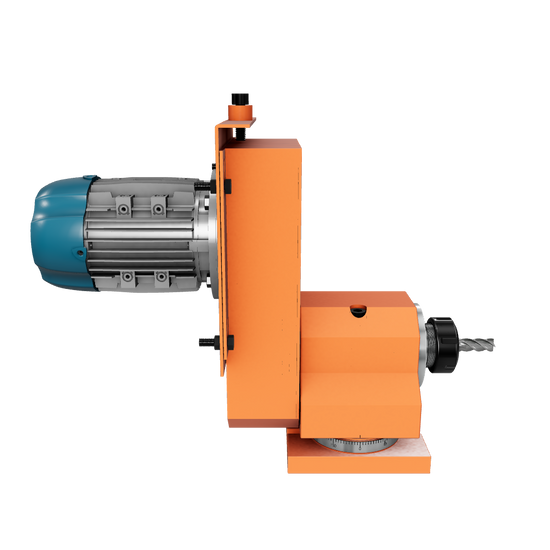

Cylindrical Grinding Fixture
Cylindrical Grinding Fixture
Regular price
Rs. 35,500.00
Regular price
Sale price
Rs. 35,500.00
Unit price
per
Shipping calculated at checkout.
Connect on WhatsApp
Couldn't load pickup availability
- Precise Concentricity – Delivers accurate, repeatable concentricity on shafts, tools and cylindrical components.
- Multi-Application Use – Supports O.D. grinding, step grinding, taper point grinding and face grinding in one setup.

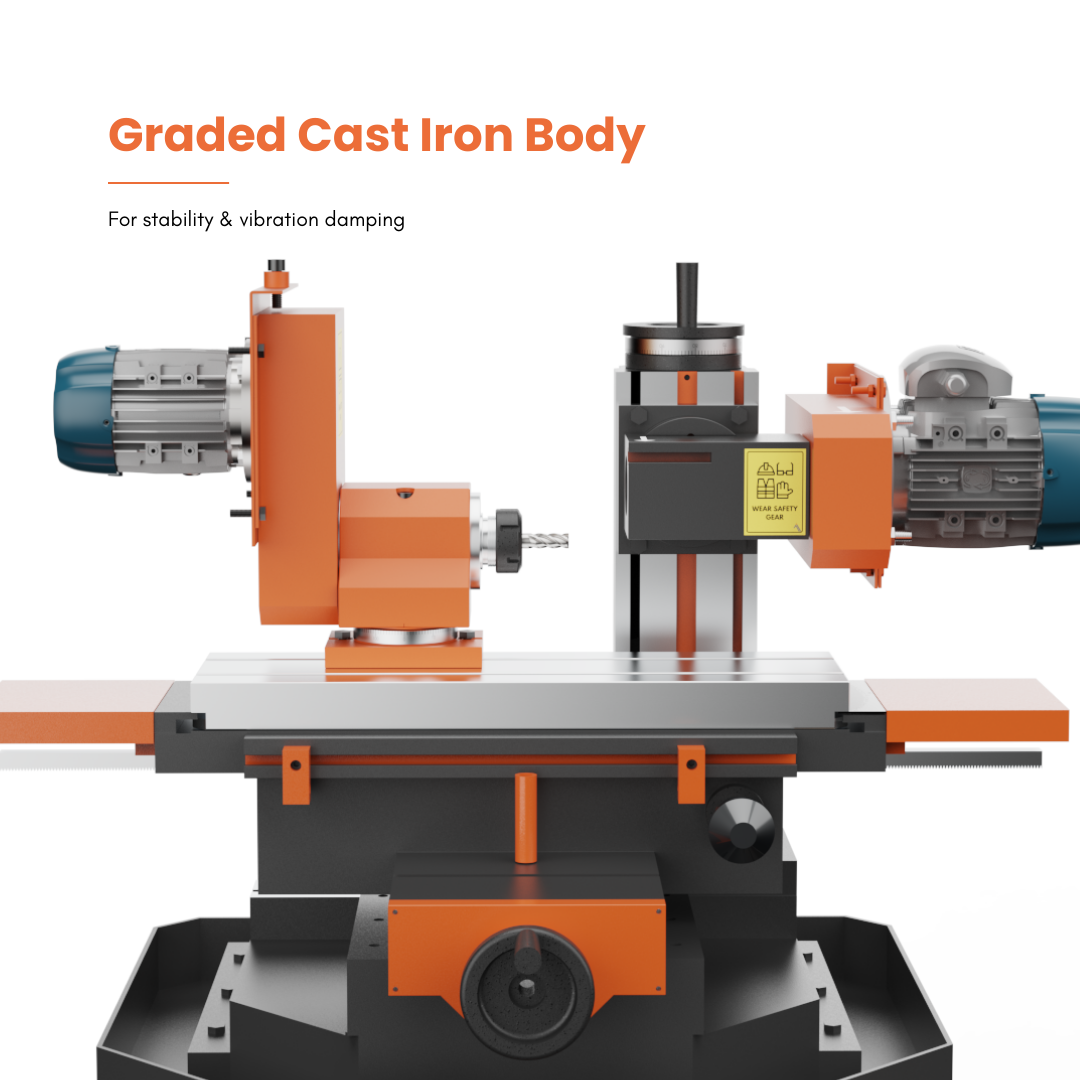

- Rigid, Compact Design – Fits standard tool and... Read More
Applications
Applications
- Blank making of Carbide / HSS rods including O.D. Grinding, Centre-point Grinding, Step Grinding
- O.D. Grinding
- Step Grinding
- Taper Point Grinding
- Parting
- Face Grinding
- Diamond-wheel Redressing
Technical Specifications
Technical Specifications
- Centre Height - 112mm (approx.)

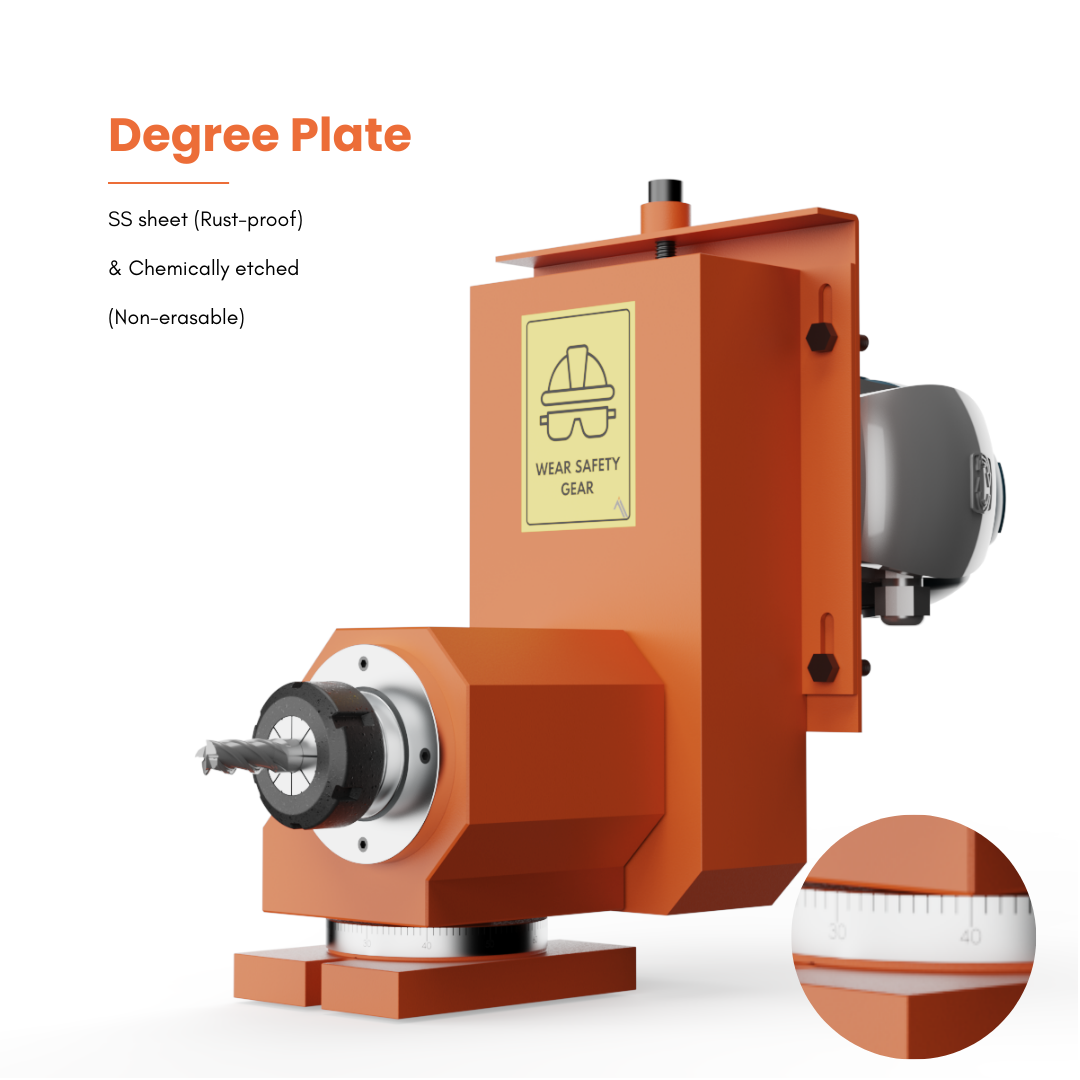

- 360° Body Swivel (with step-less locking)

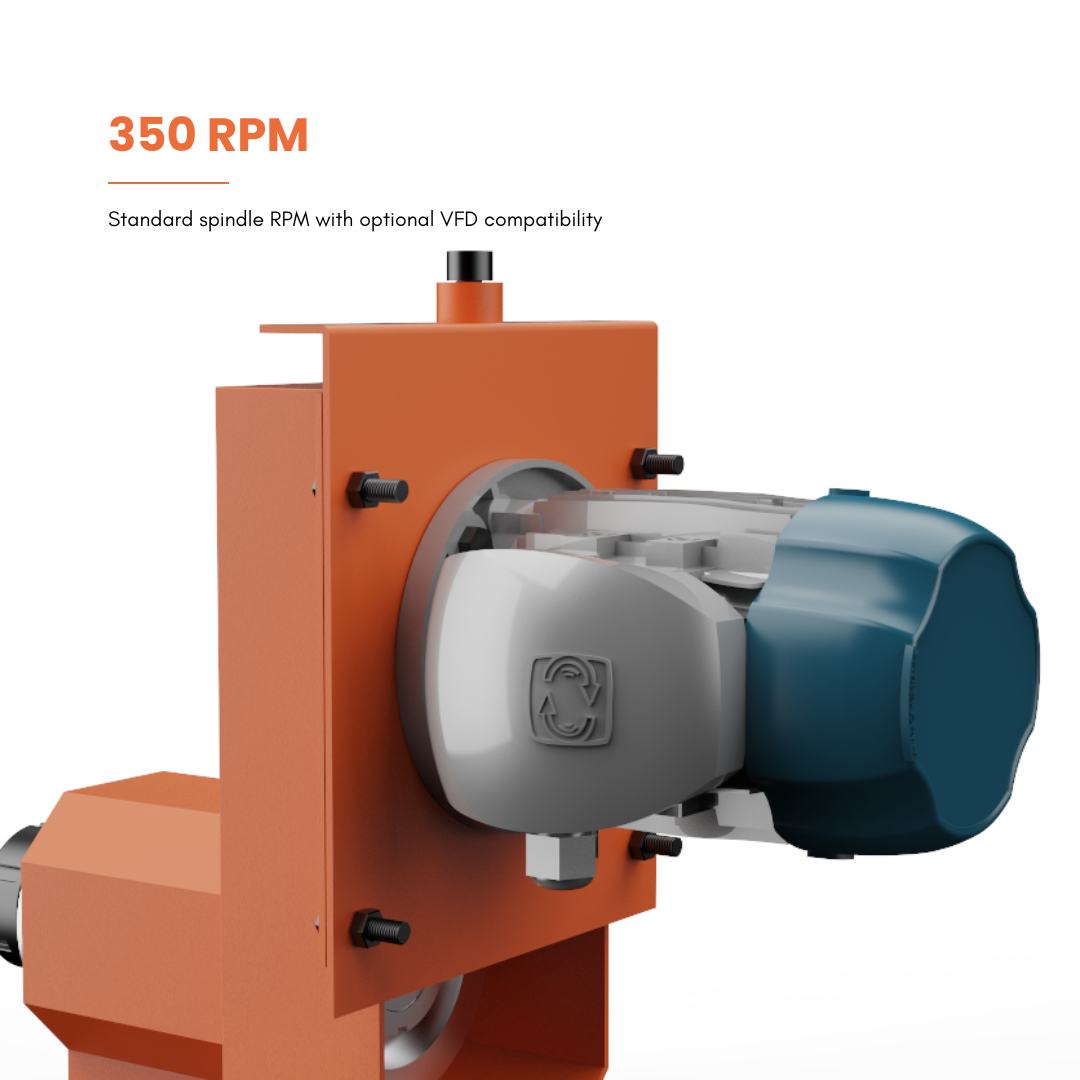

- 350RPM - Standard Spindle RPM with Optional VFD compatibility

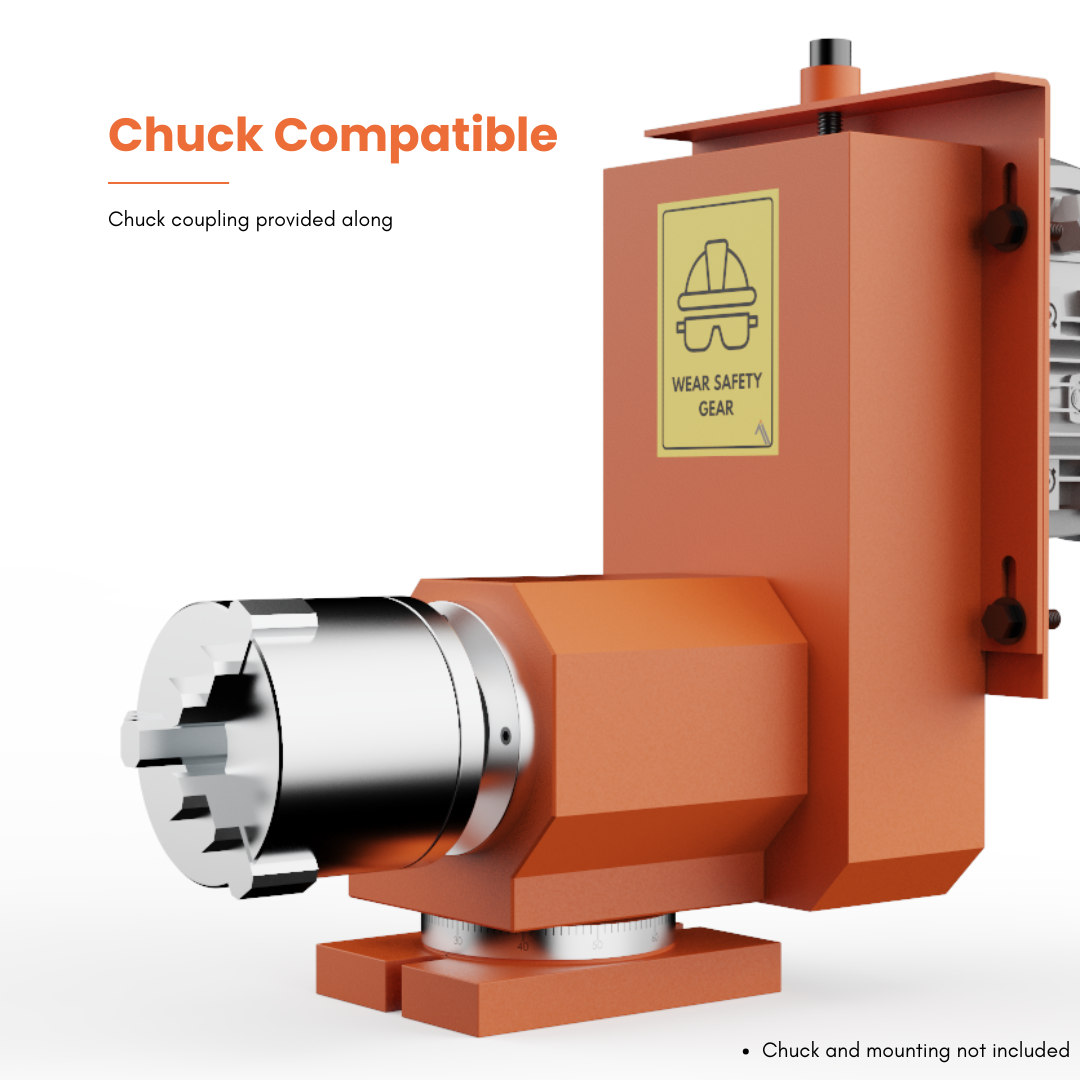

- Compatible with chuck

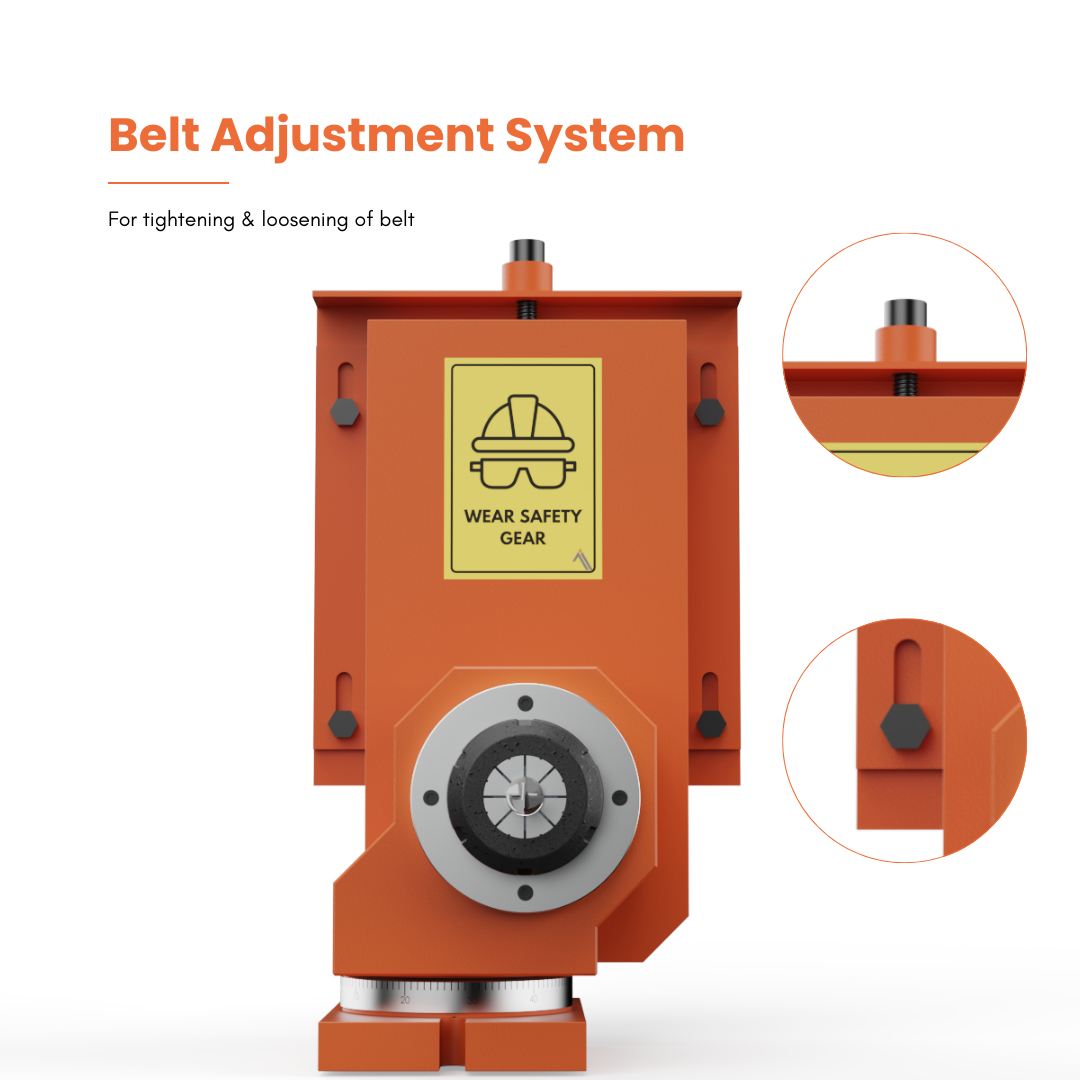

- Belt adjustment system

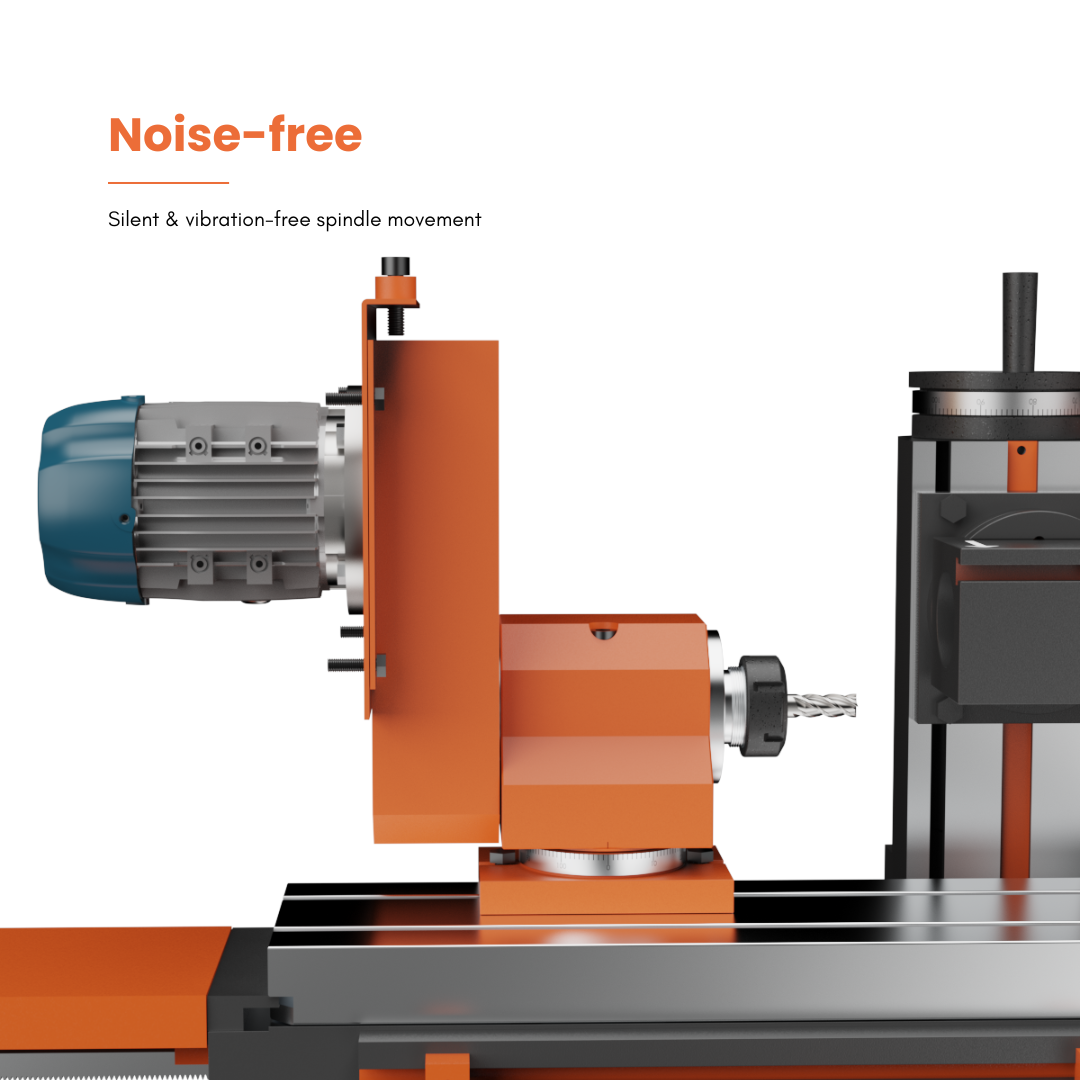

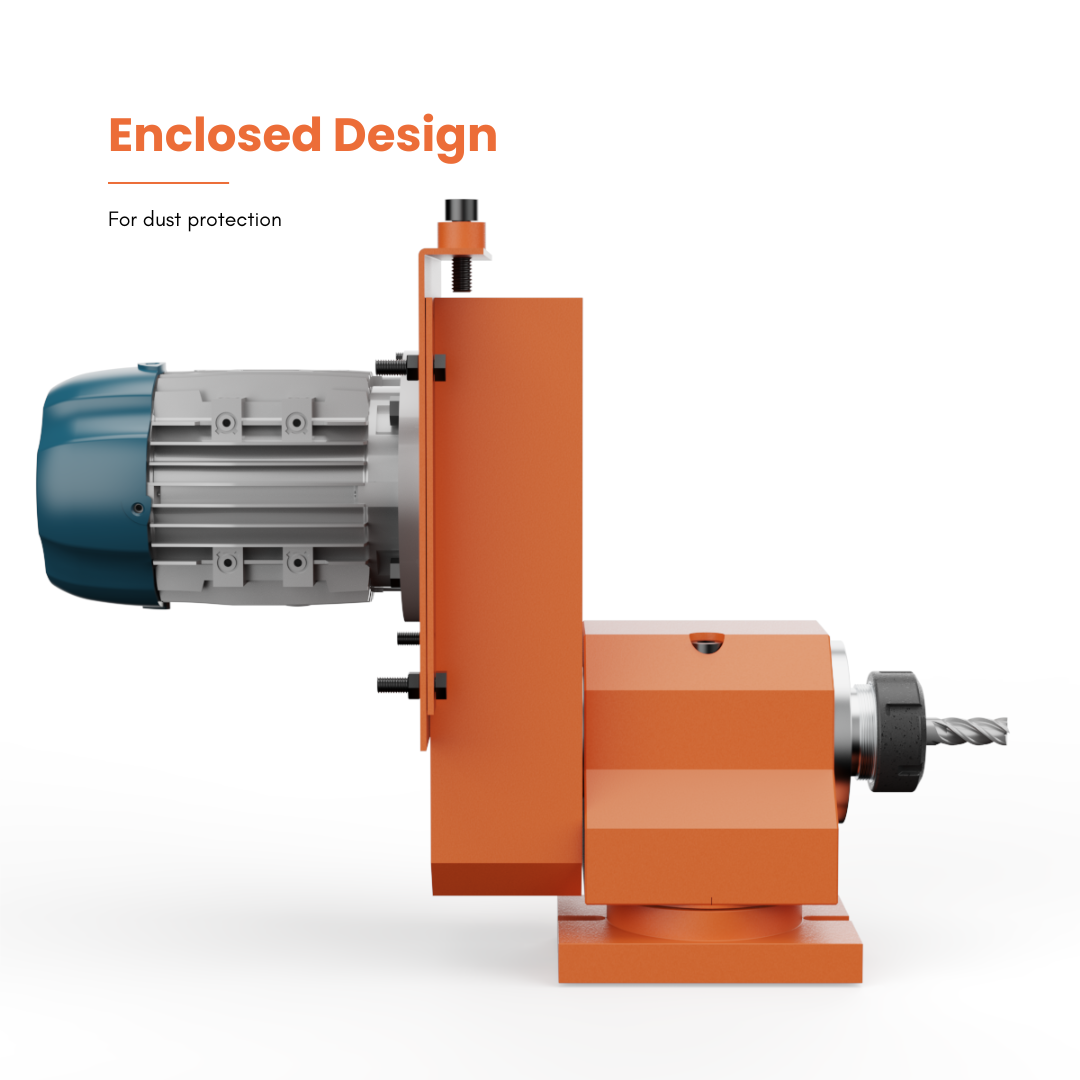

- Sealed & Dustproof bearings

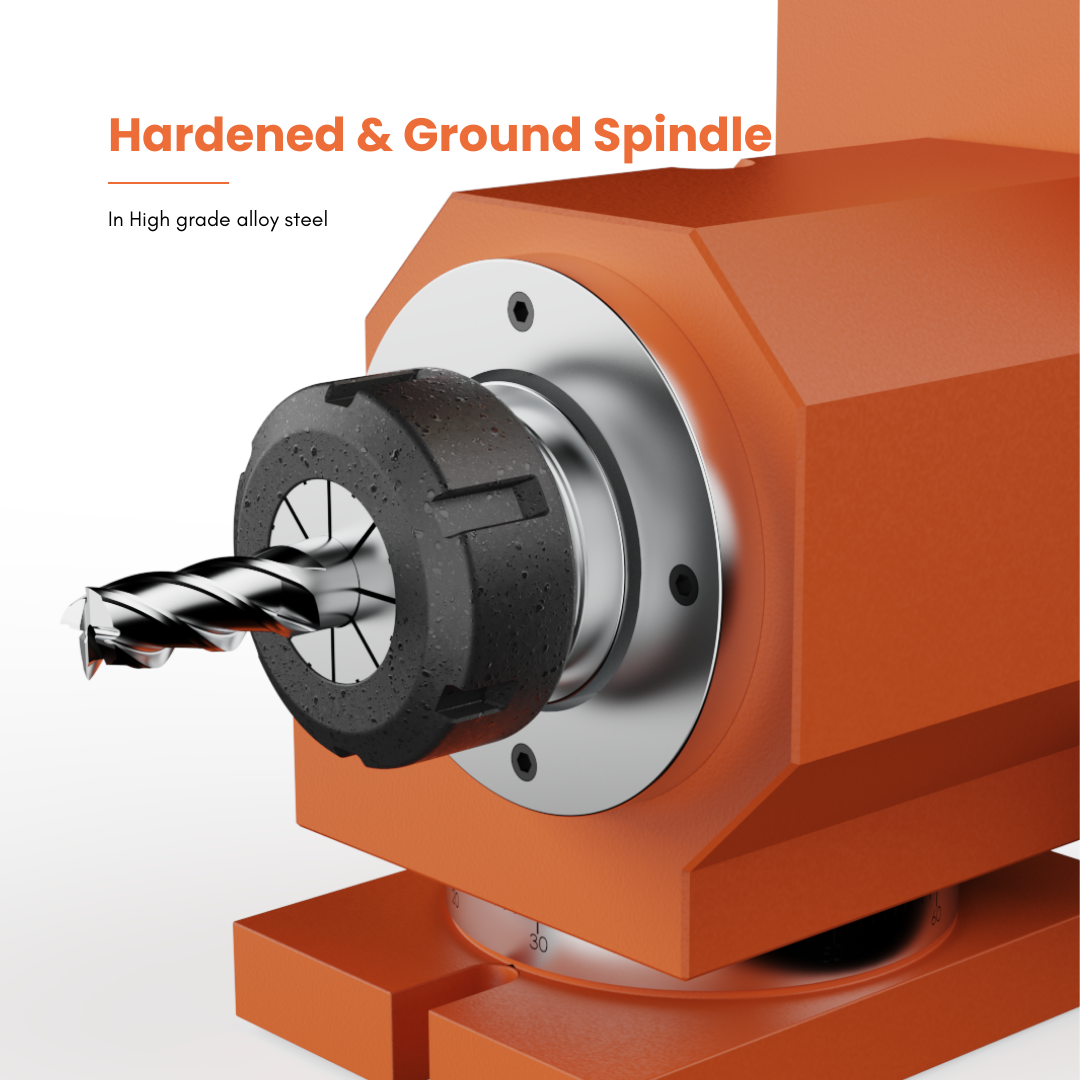

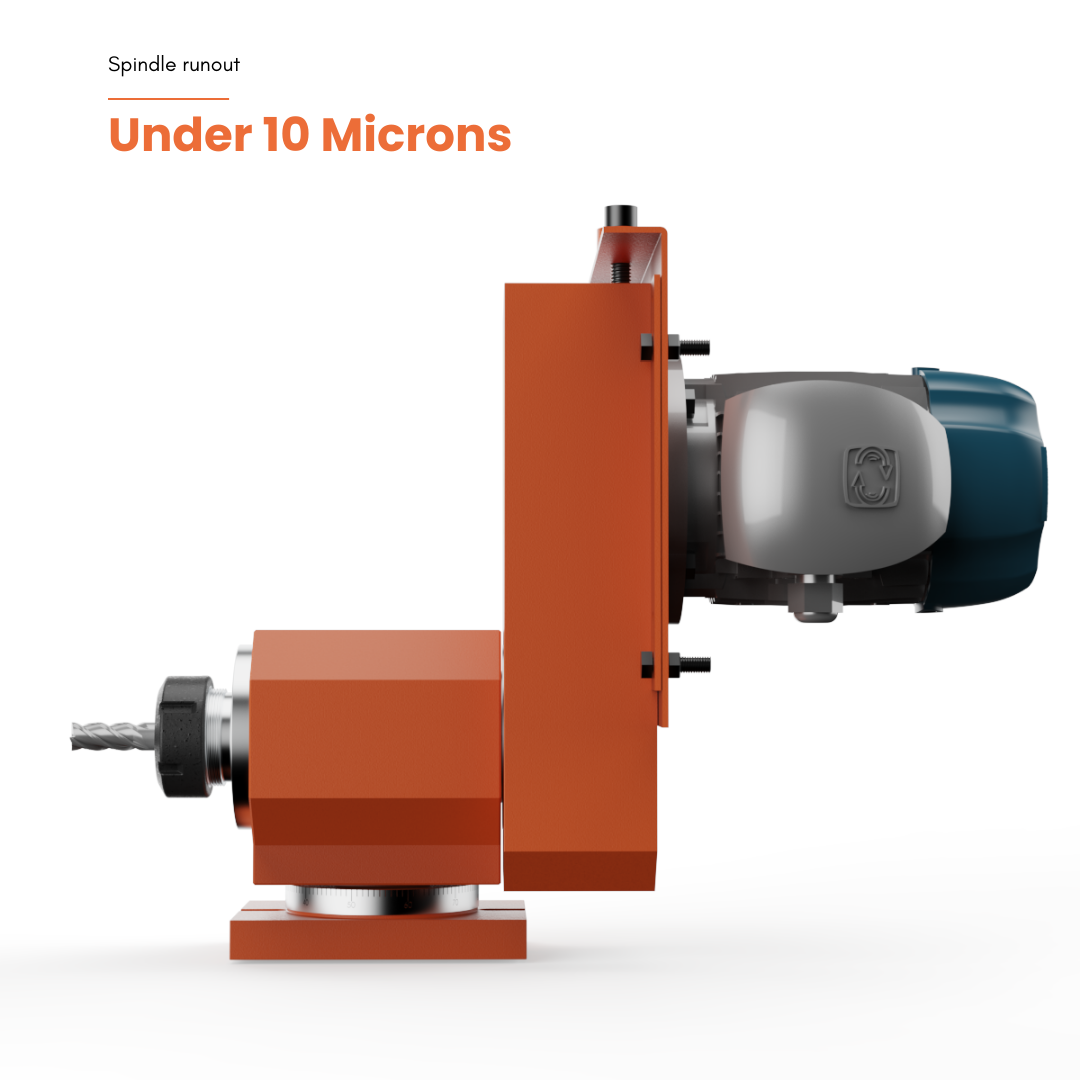

- Spindle runout - under 10 microns

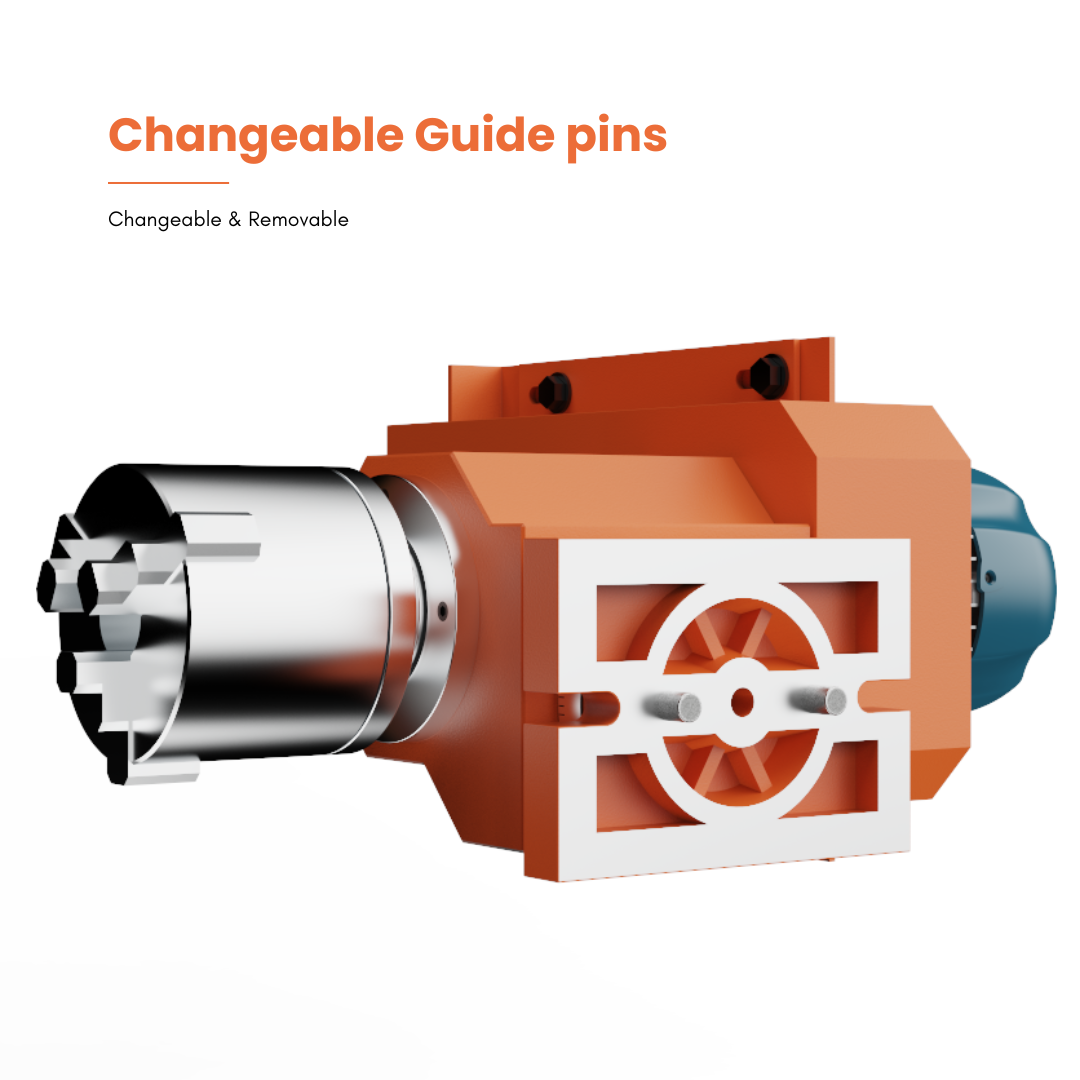

- Adjustable guide pins
- Weight - 24.00 Kgs (approx.)
Dimensions
Dimensions

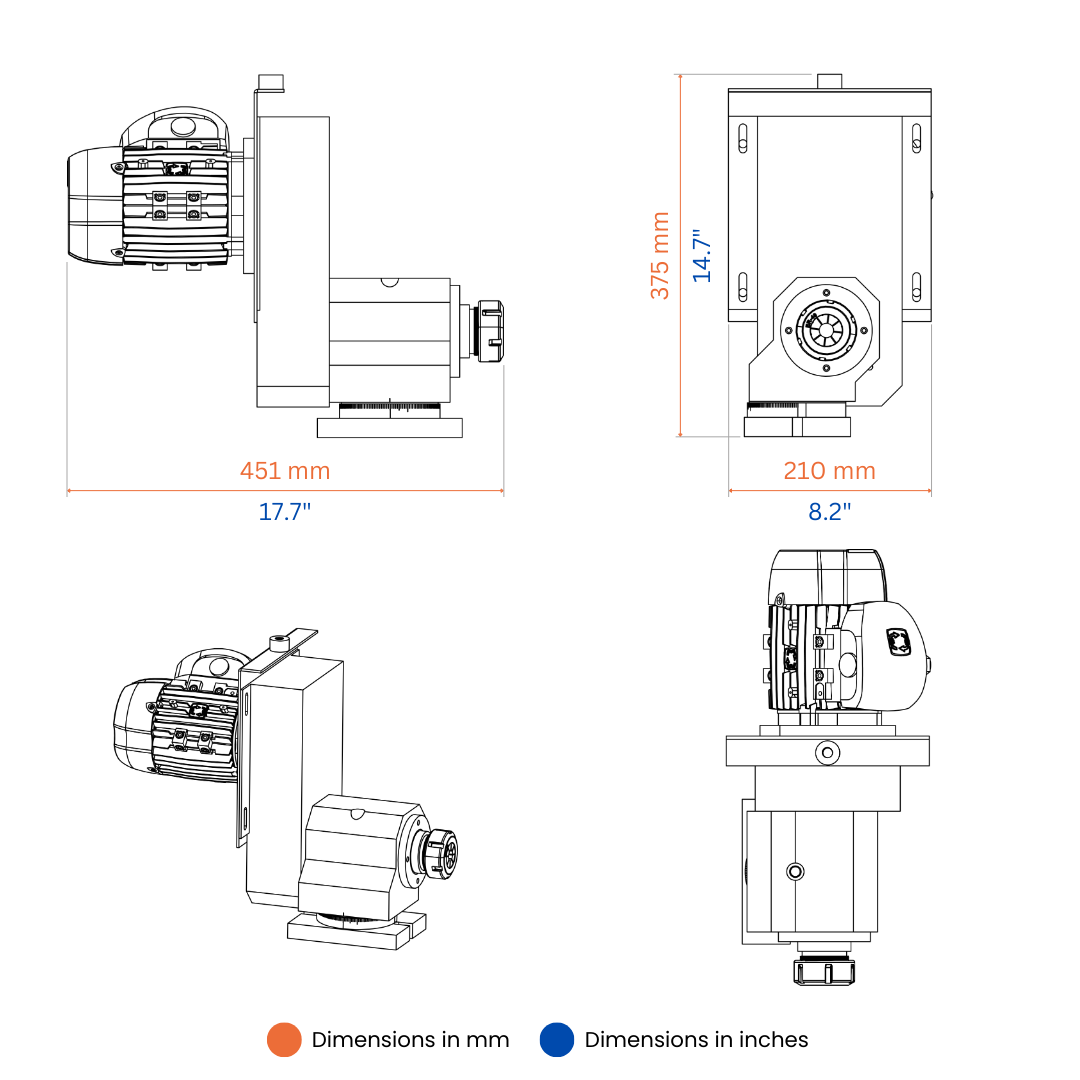

- LxBxH - 451mm x 210mm x 375mm (approx.)
Delivery
Delivery
- Delivery between 1-2 weeks after confirmation of order
Warranty
Warranty
- 1 year against all mechanical parts
