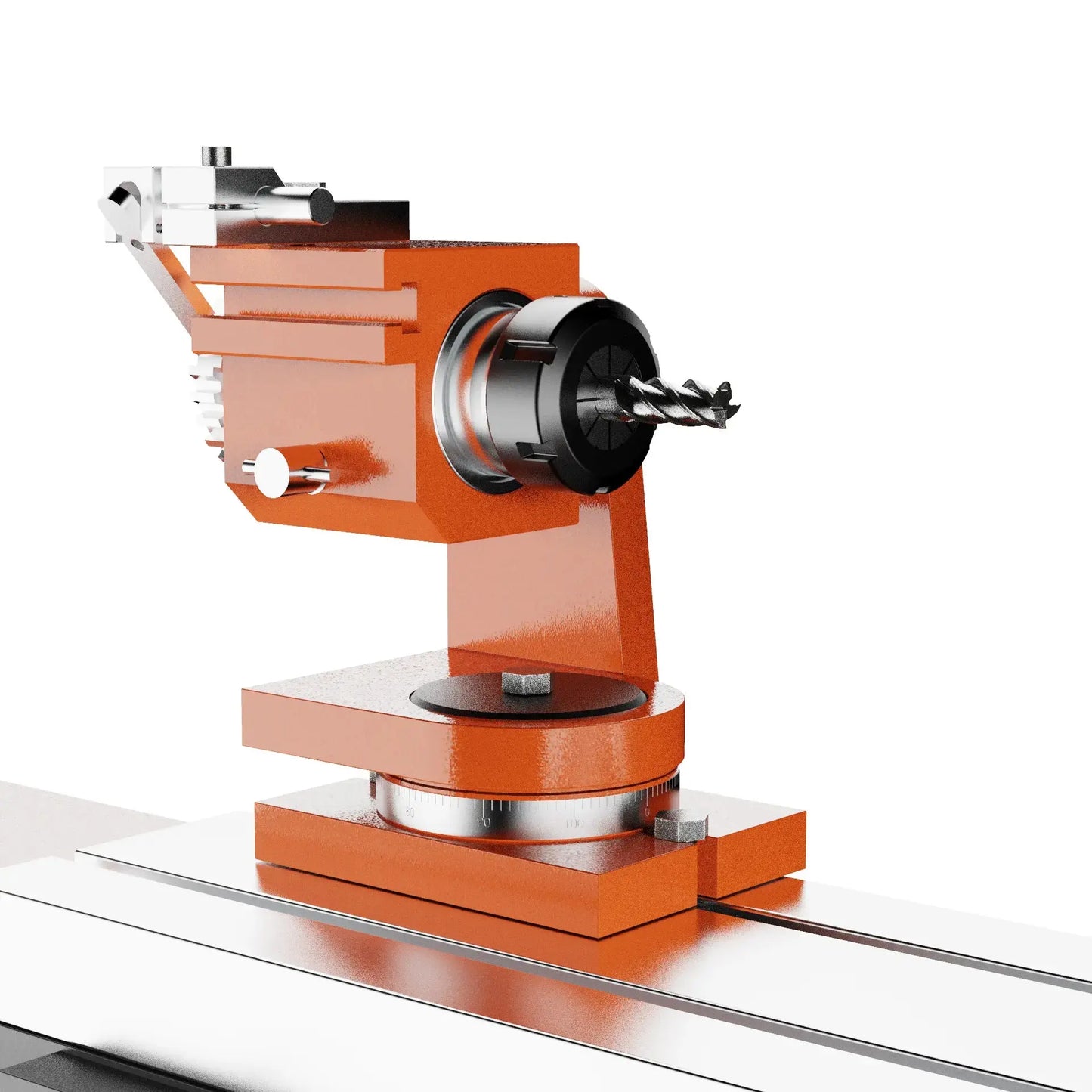

Extra Precision Universal Workhead Fixture

Rs. 25,500.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Connect on WhatsApp

All-in-One Precision Fixture – Supports grinding, milling, drilling, and indexing—no need for multiple setups.
360° Indexing Accuracy – Achieve flawless angular adjustments for high-precision tasks.
Compact, Rigid Design – Save space on your tool room floor without sacrificing... Read More

All-in-One Precision Fixture – Supports grinding, milling, drilling, and indexing—no need for multiple setups.
360° Indexing Accuracy – Achieve flawless angular adjustments for high-precision tasks.
Compact, Rigid Design – Save space on your tool room floor without sacrificing strength or stability.
Export-Grade Quality – Trusted by professionals in India, UAE, Malaysia, Vietnam & more.
Versatile Job Holding – Compatible with ER Collets, Morse Tapers, Round Chucks, and more.

A Multi-Utility Precision Fixture for Modern Tool Rooms

Experience the perfect blend of accuracy, quick setup, and space-saving design with the Extra Precision Universal Workhead from Apar Machines. Designed for accuracy and adaptability, this fixture supports grinding, milling, drilling, and indexing operations—essential for today’s high precision manufacturing environments.

Trusted since 1983 by leading tool rooms in India, it's gaining momentum among grinding machine accessories suppliers in UAE and Southeast Asia due to its export-grade performance and compact design.

Why Choose Our Universal Workhead?

360° Indexing Accuracy

Achieve repeatable and exact angular adjustments for intricate operations.

Multiple Applications – One Fixture

Re-sharpen Endmills, Drills, Slotting Cutters, Side & Face Cutters etc.
Grind round or multi-sided punches
Perform quick angular setups for CNC/Conventional Milling, Drilling, EDM Wirecut, Surface Grinding, and more.
Adaptable to wide Job holding systems like ER Collets, Morse Tapers, Round Chuck etc.

Compatible with All Major Machine Types

Tool and Cutter Grinding Machines
Milling Machines (CNC & Manual)
Drill and Cutter Grinder setups
Surface Grinding Machines
Other high-performance machine tools and manufacturing machines

Space-Saving, Rigid & Reliable

Perfect for production floors and tool rooms, its compact form doesn't compromise performance. Built for toolmakers who demand long-term precision and productivity.

Export-Ready – Now Shipping Worldwide

We now export to the UAE, Malaysia, Vietnam, and beyond. Whether you're sourcing universal workhead grinders, tool and cutter grinding machines, or grinding machine accessories, Apar Machines ensures:

Fast lead times
Competitive pricing
Reliable service and support
Indian-built quality trusted globally

Buy Now or Request a Quote

Get specifications, catalog pricing, and global delivery options. Enhance your workflow with the Extra Precision Universal Workhead – where every degree counts in high precision manufacturing.

Get in touch for customisation to discuss your requirements.

Applications

The Extra Precision Universal Workhead is a compact and rigid indexing fixture designed for high-accuracy applications in tool grinding, milling, drilling, and general workholding. Engineered with precision-ground components and high-quality bearings, this fixture ensures consistent performance and repeatability in demanding industrial environments.

🔩 Key Technical Features

•⁠ ⁠Indexing Capability:
- 360° continuous rotation with positive locking
- Fine indexing resolution for precise angular divisions
- Quick indexing setup ideal for repetitive tasks
- Interchangeable Indexing plates

•⁠ ⁠Workpiece Holding Capacity:
- Suitable for tool shanks up to Ø26 mm , punches, and cutters
- Standard collet or chuck mounting options (custom options on request)

•⁠ ⁠Construction & Material:

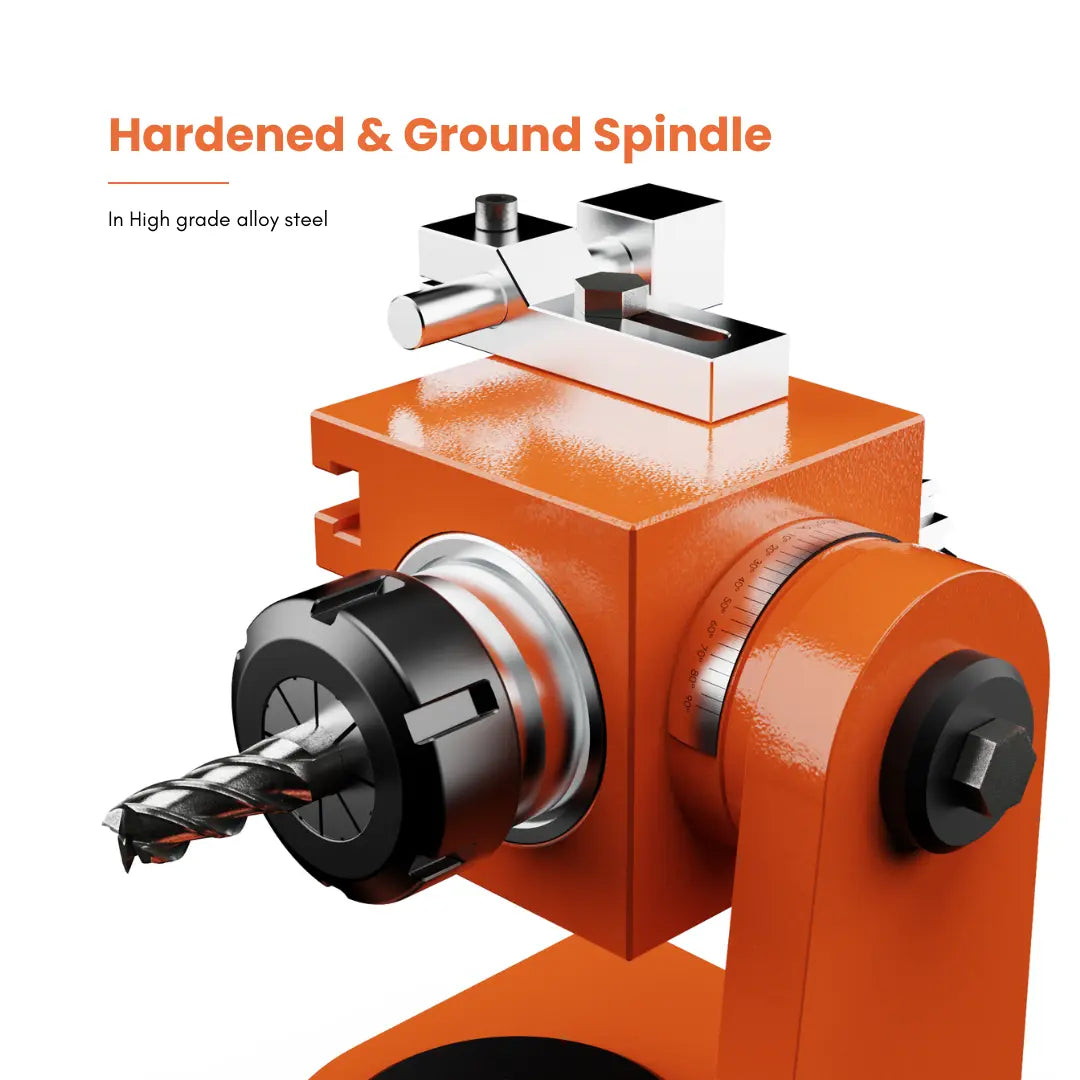

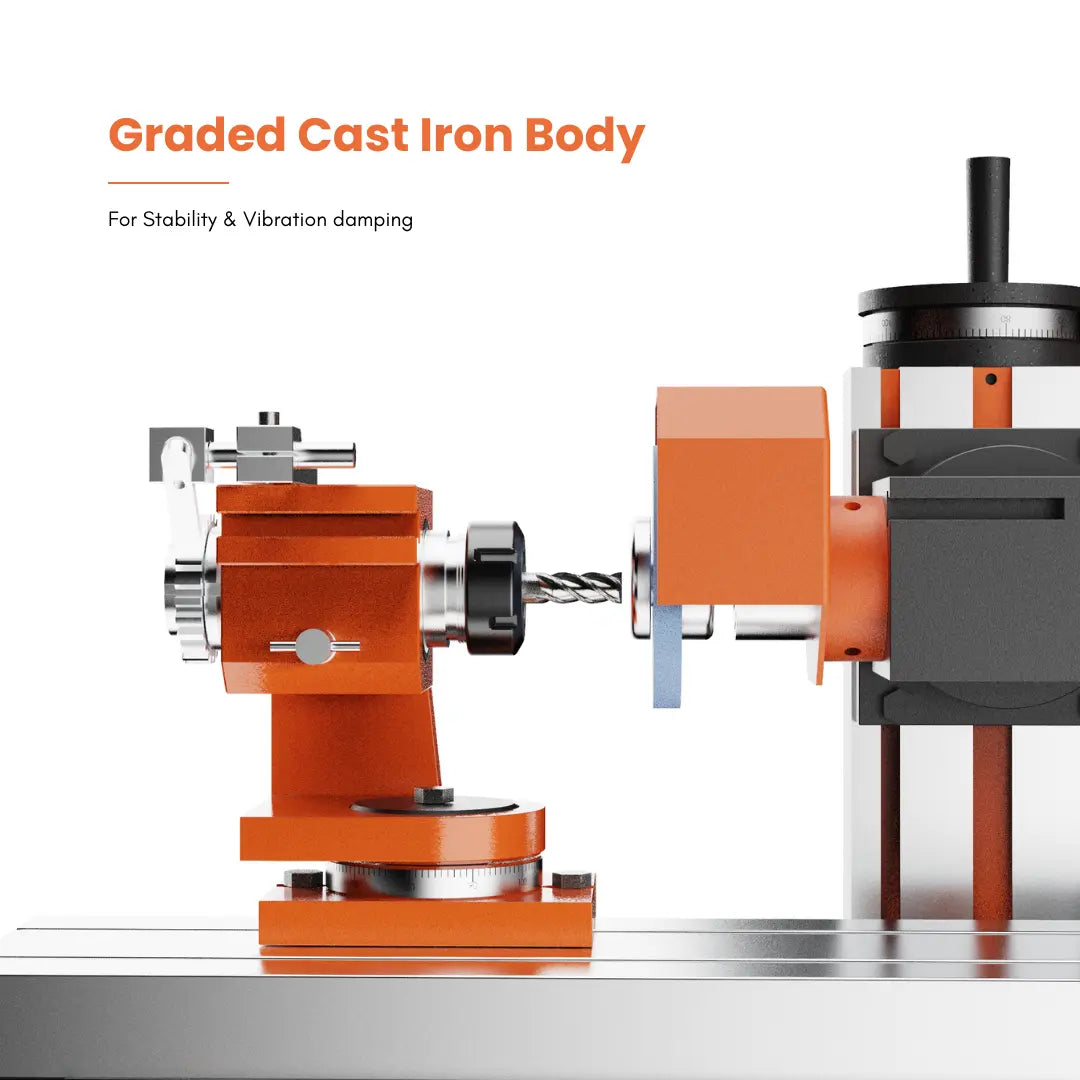

- Solid Cast Iron overall body. Spindle made from hardened tool steel
- Ground to fine tolerances of under 10 microns for concentricity and parallelism
Sealed spindle bearings for dust protection
- Powder-coated / Epoxy painted exterior for corrosion resistance and long service life

•⁠ ⁠Mounting Base:
- Slotted base for easy clamping on T-slotted machine tables
•⁠ ⁠Removable Guide Pins for direct mounting on a flat magnet chuck
- Compatible with universal tool & cutter grinders, milling machines, drilling machines, and surface grinders

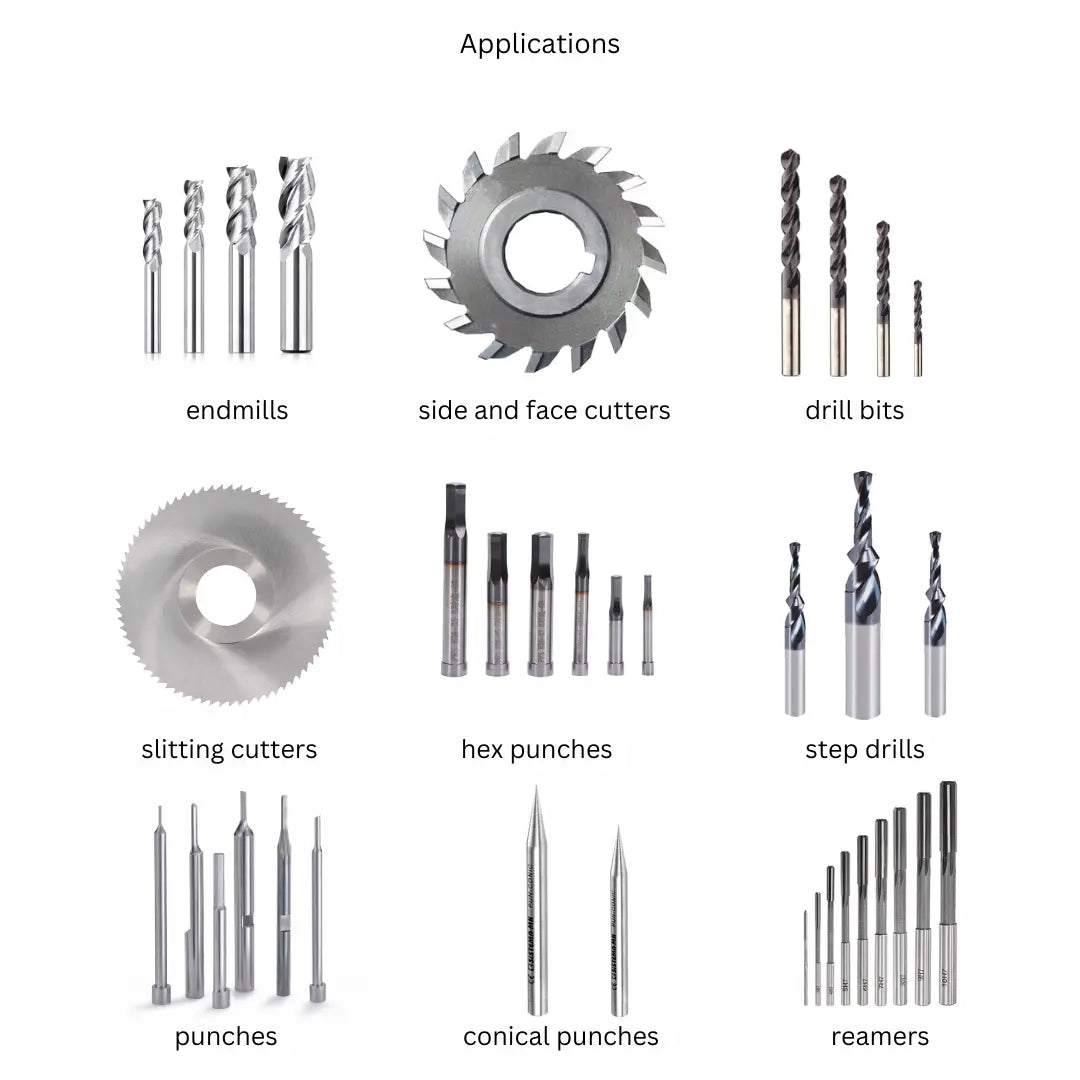

🧪 Applications

This quick indexing universal workhead is ideal for:
•⁠ ⁠Surface or Tool Grinders for re-sharpening endmills, drills, punches, S&F / Slotting cutters
•⁠ ⁠Milling Machines (Toolroom / VMC / Conventional Mills)
•⁠ ⁠Drilling Machines
•⁠ ⁠EDM Wirecuts etc.

Technical Specification

Centre Height - 161mm (approx.)

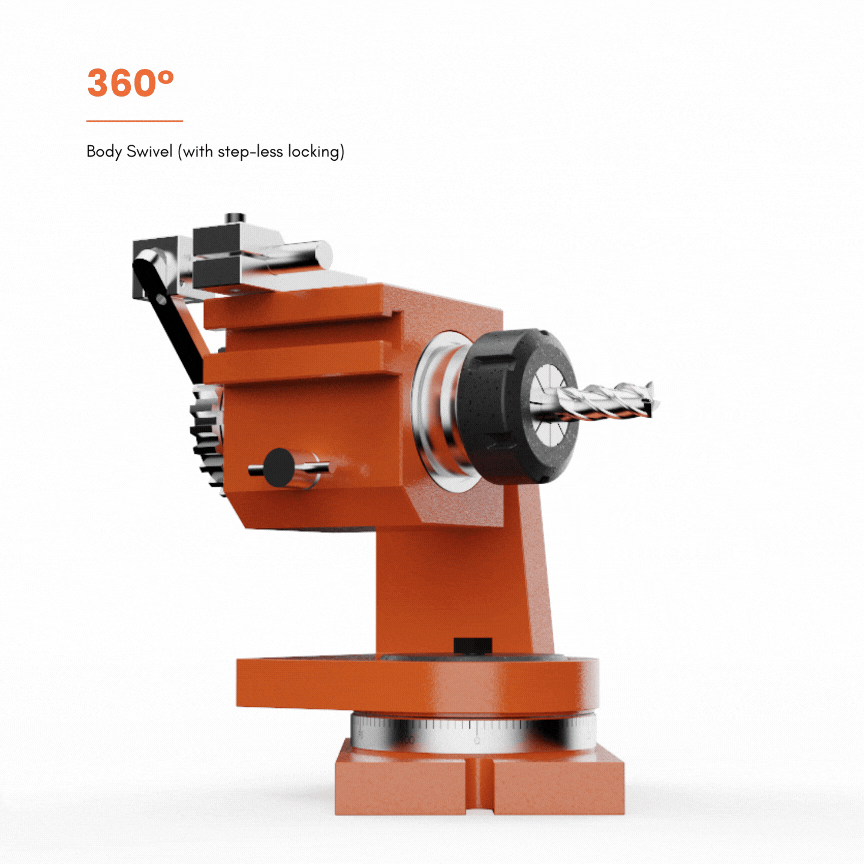

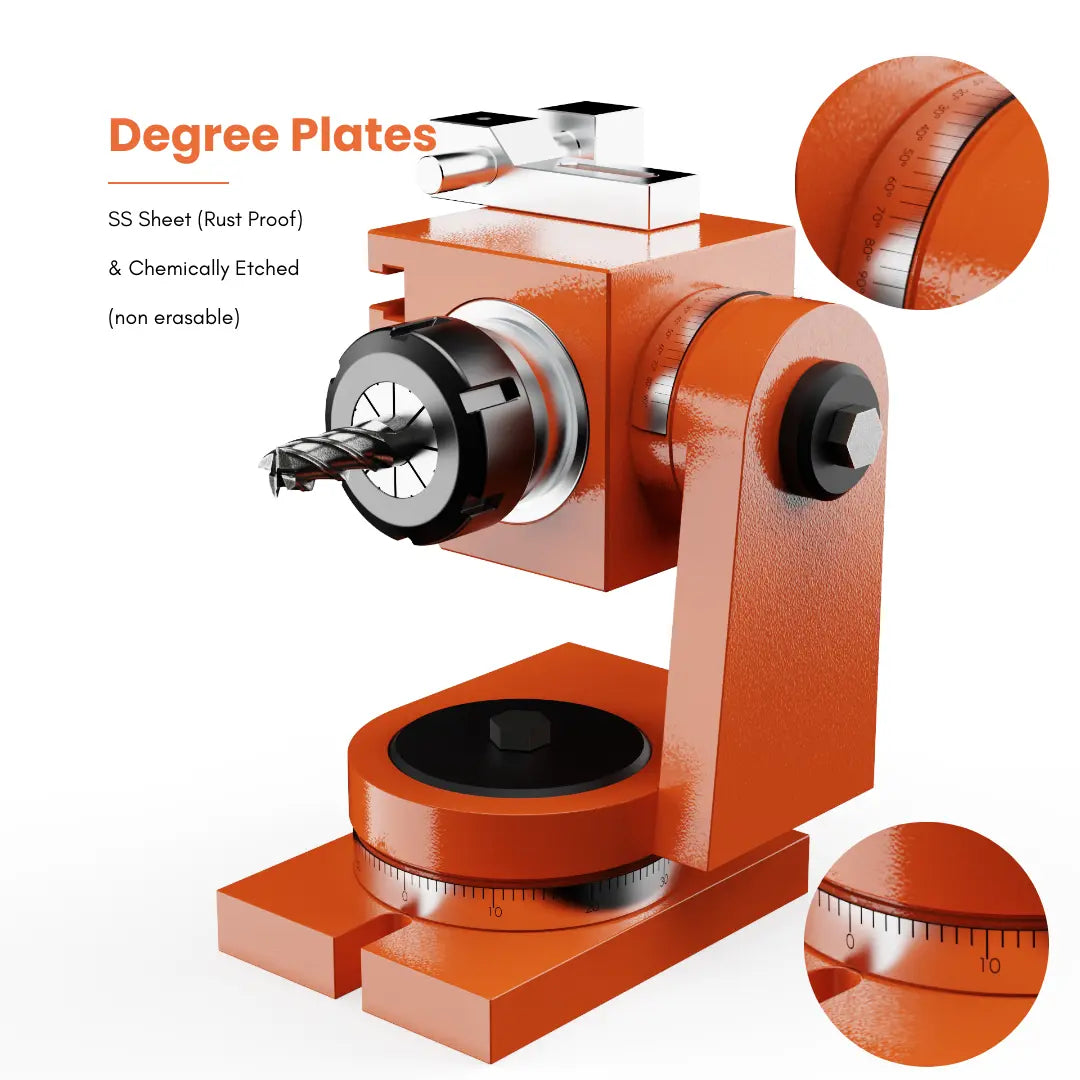

360° Body Swivel (with step-less locking)

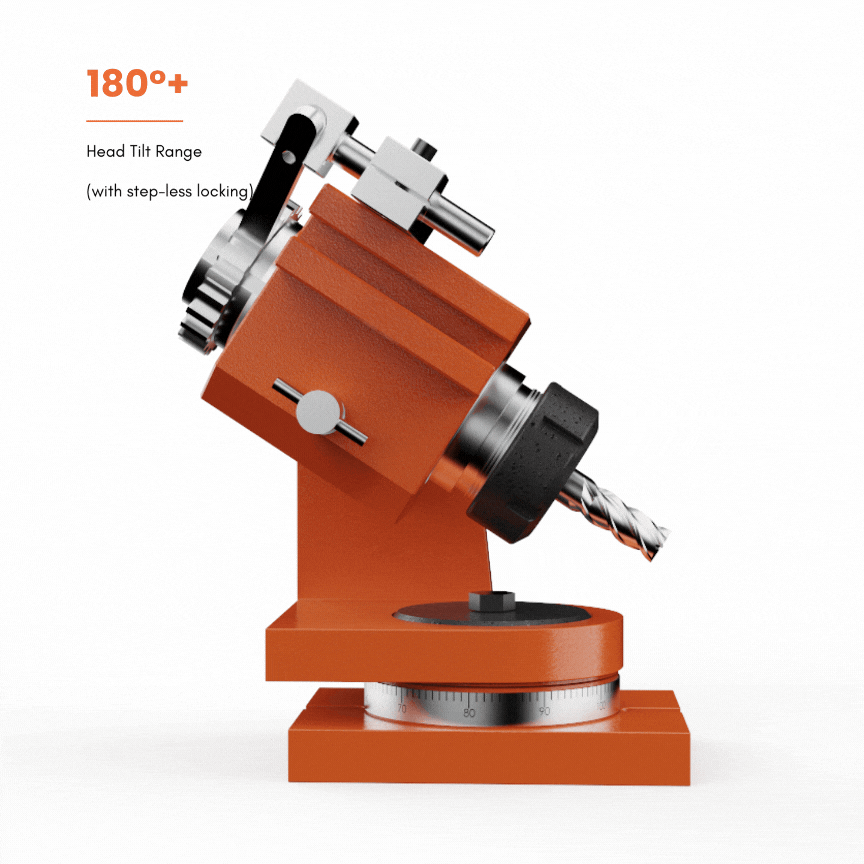

90°+ Head swivel Swivel (with step-less locking)
Sealed & Dustproof bearings

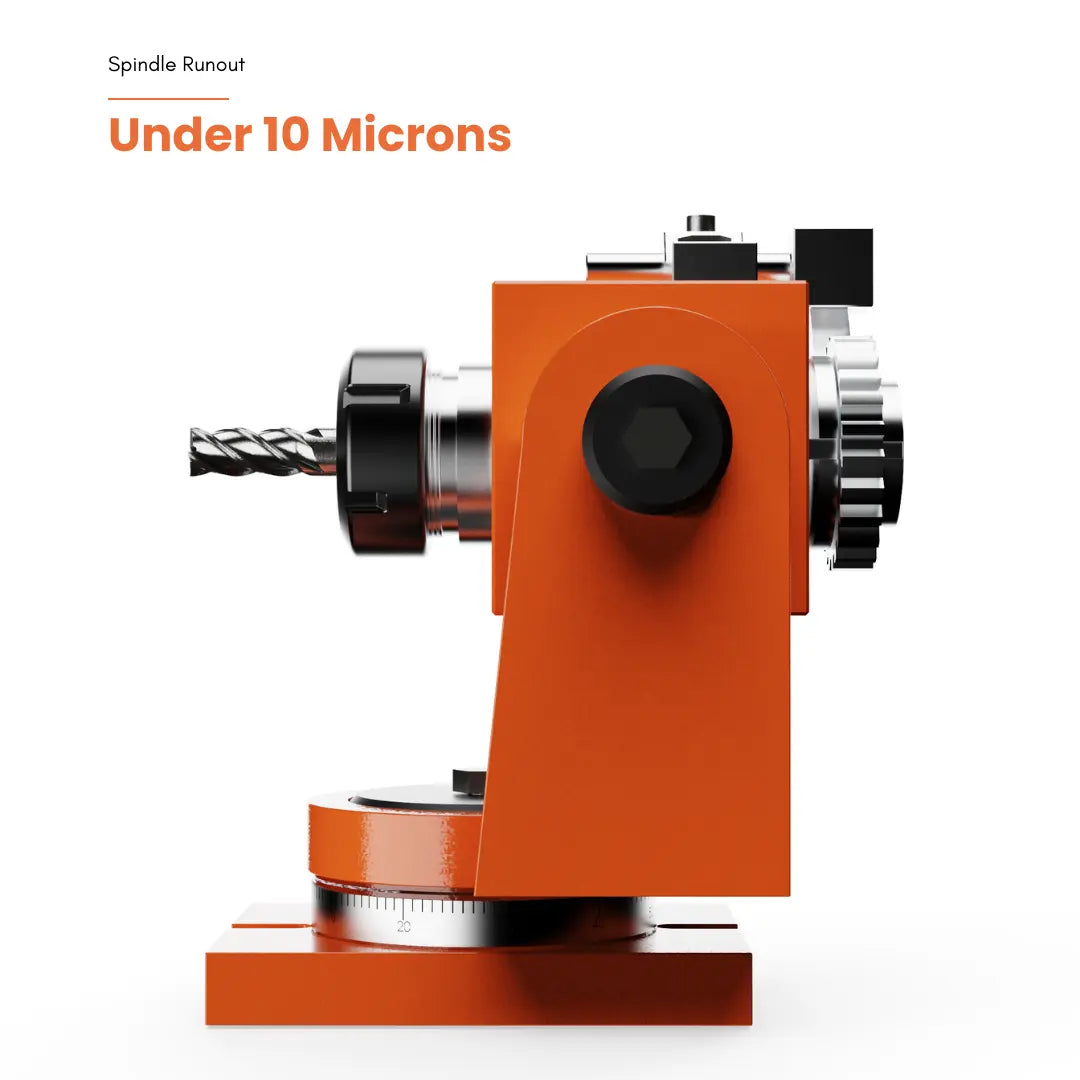

Spindle runout - under 10 microns

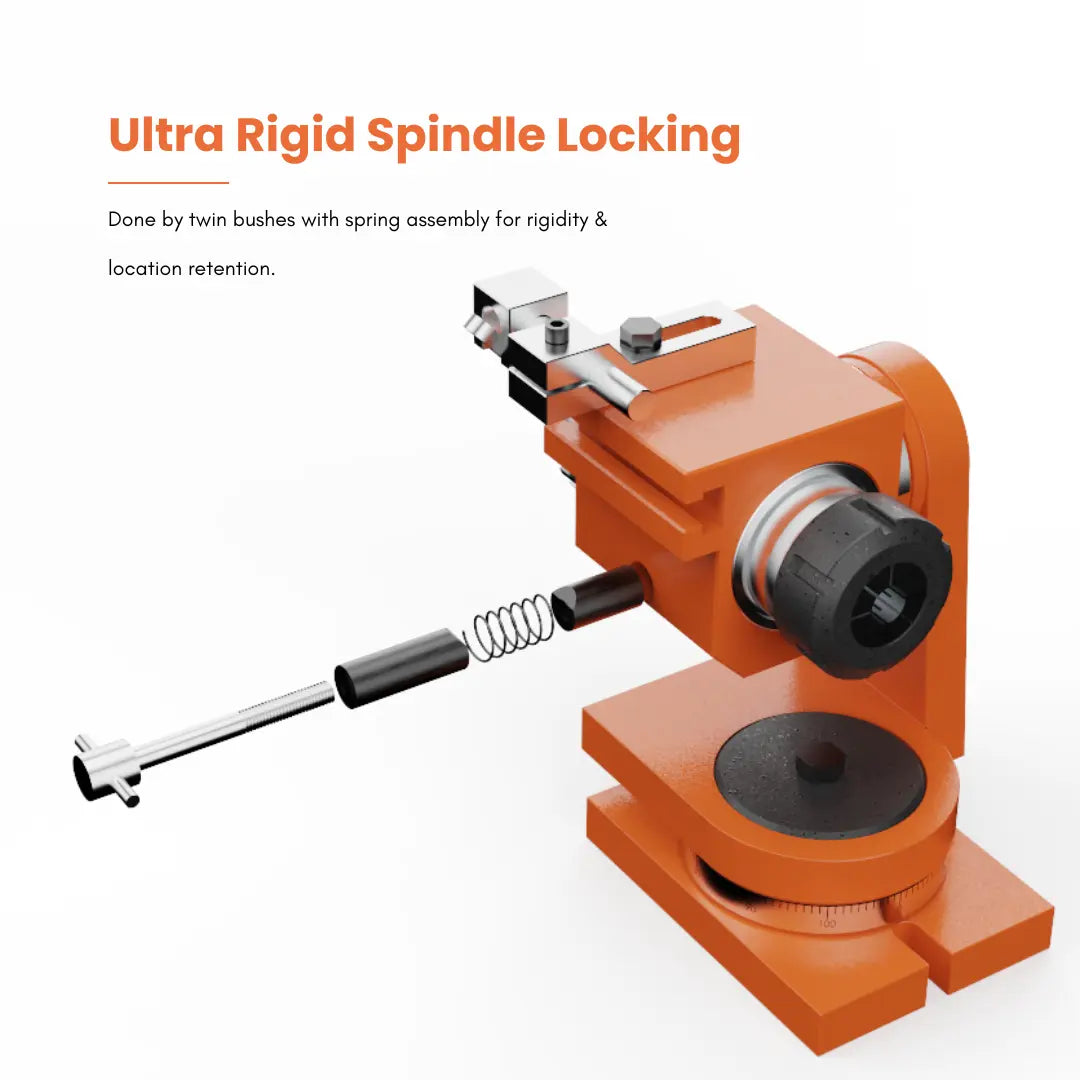

Spindle locking is done by twin bushes with spring assemby for rigidity & precision

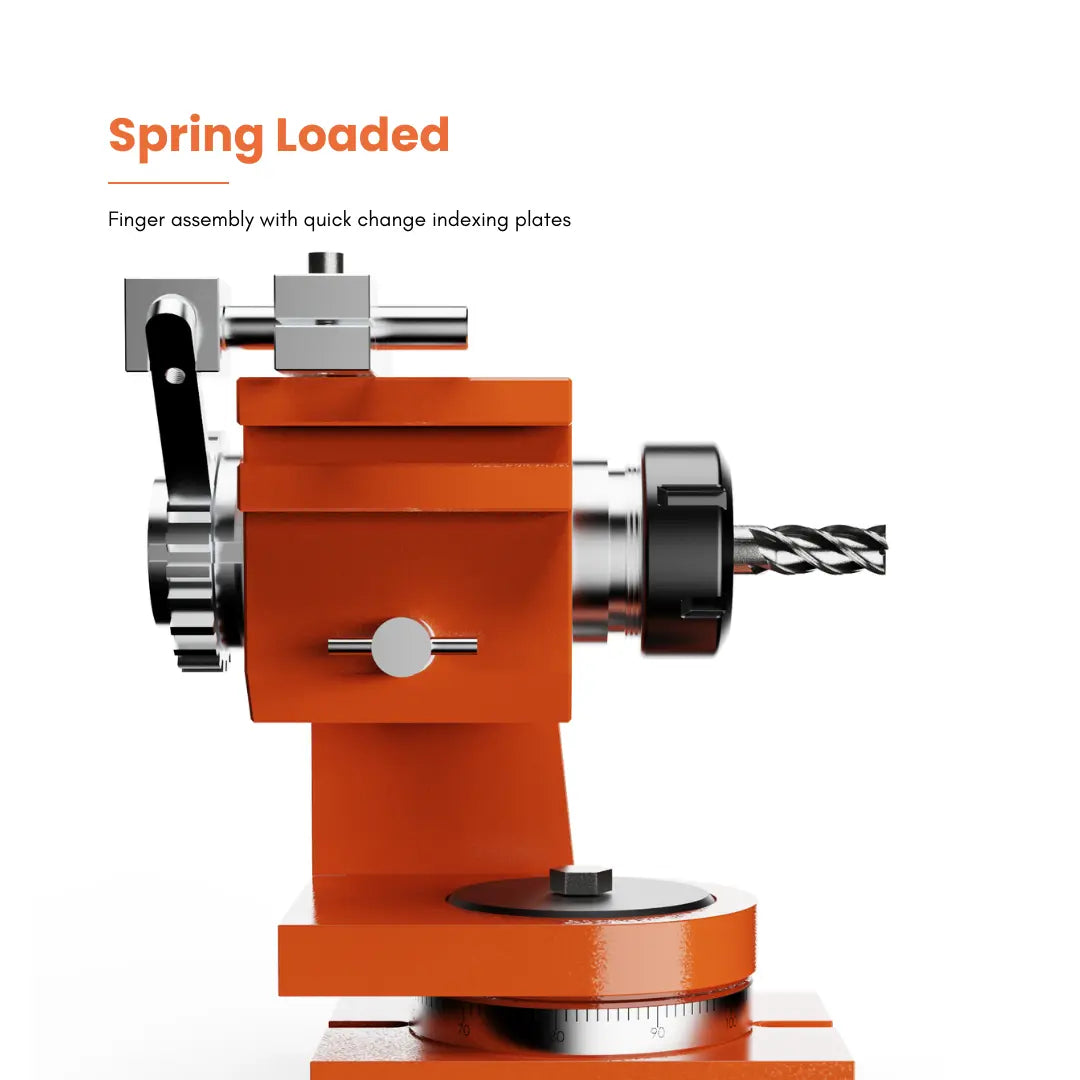

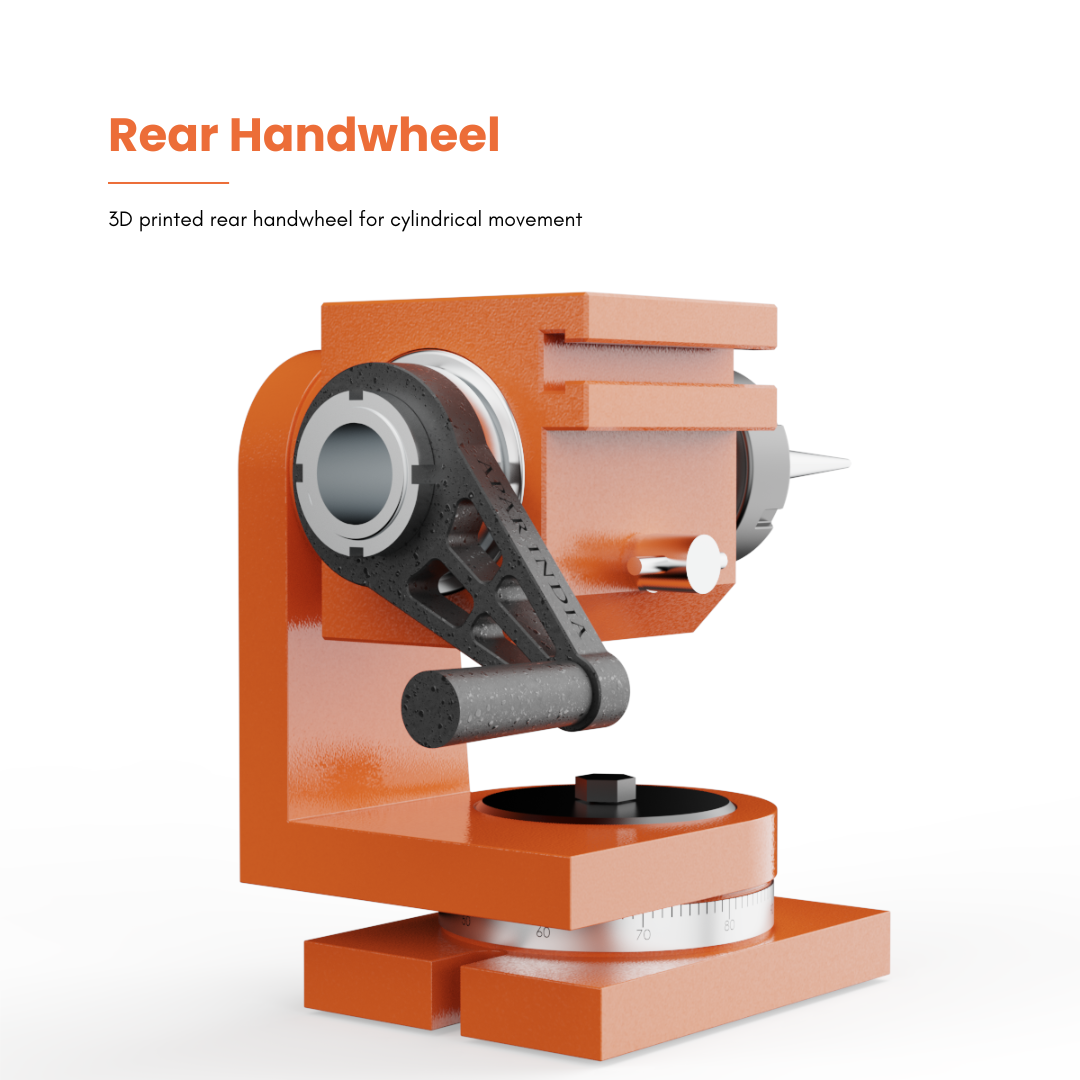

Spring loaded indexing assembly with quick change indexing plates
Adjustable guide pins
Weight - 14.00 Kgs (Approx.)

Dimensions

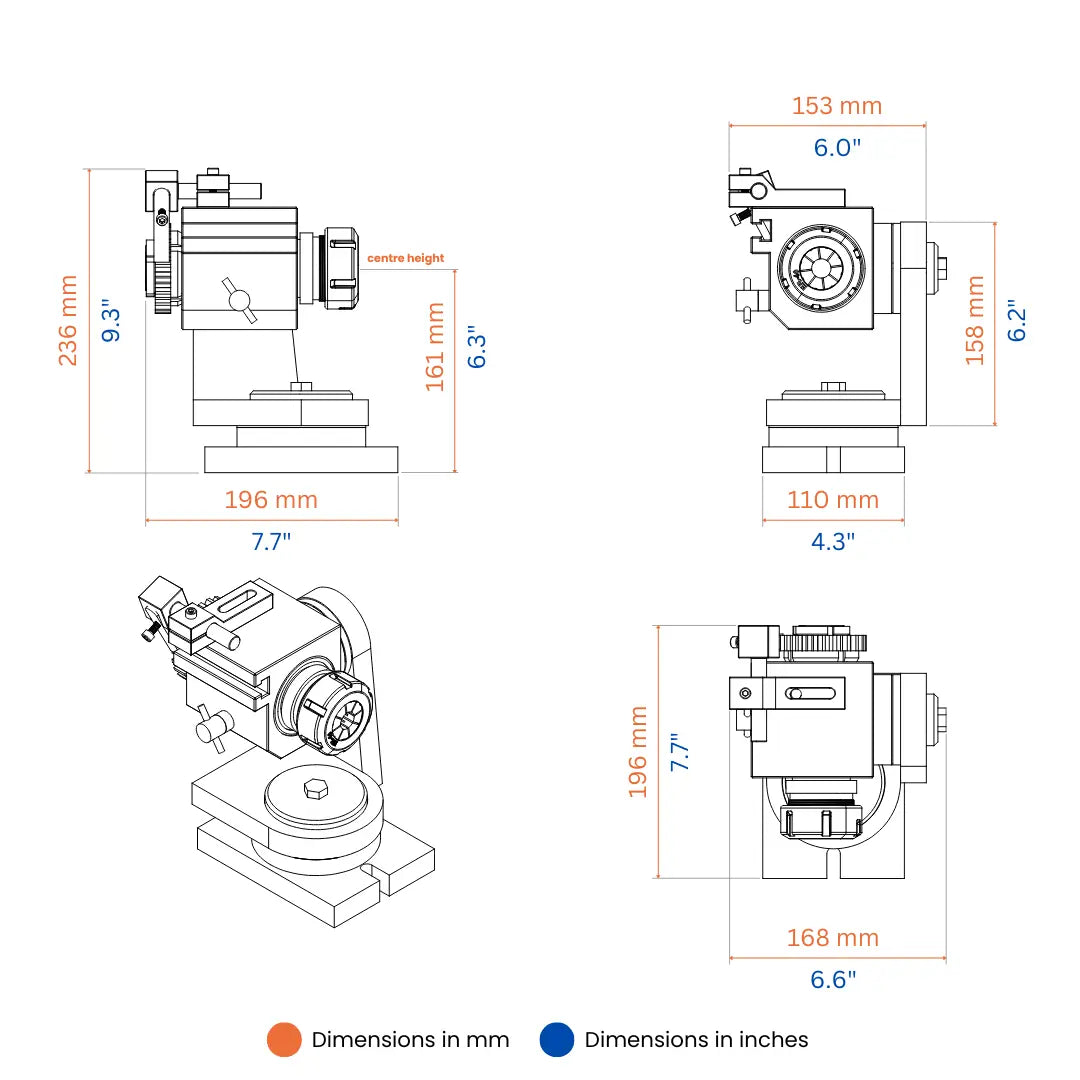

LxBxH - 196mm x 168.5mm x 236mm (approx.)

Shipping

Delivery between 1-2 weeks after order confirmation.

Warranty

1 year against all mechanical parts

View full details

Request A Callback

Frequently asked questions

1. What does the Universal Workhead Fixture do, and which operations can it handle?

It securely holds tools or workpieces for cylindrical and tool grinding, indexing, light milling, drilling, and surface finishing—combining clamping, precision rotation, and quick indexing in one unit.

2. Can I place a bulk or repeat order for resale/distribution?

We welcome B2B inquiries and can offer reseller pricing. Please contact us at info@aparmachines.com

3. Which machines, tapers, and collet/chuck systems is it compatible with?

Fits most Tool & Cutter Grinders, Surface Grinders, conventional and CNC Milling machines, commonly used drilling machines etc. Frequently used as an inspection apparatus too.

4. What precision and capacity can I expect?

Accepts long work pieces (250 mm and more) due to its through bore design (eg. Er32 model has a through bore of 21 mm and ER40 of 27 mm)

5. How adjustable is the head?

Head tilts and swivels for compound-angle grinding or milling; a quick-lock scale lets you dial in and repeat angles fast.

6. Whats the build quality like?

15 kg (approx.) body in precision-ground, stress-relieved cast iron with hardened steel spindles and sealed bearings for protection from grinding dust and coolant helping ensure a long life. Supplied pre-aligned and ready to mount via ground base surfaces with T-slots/bolt holes.

7. Is it suited to high-volume production or toolrooms?

Although, the Universal Workhead is most suitable several toolroom due to its versatility, it's quick indexing and low effort - high torque spindle locking mechanism of spring loaded twin bushes makes its the ideal choice for high-volume production jobs as well.

8. Which accessories, custom options, or spares are available?

ER collets, round chucks, special taper adapters, extra indexing plates, and replacement bearings are stocked. Custom bore sizes or mounting flanges can be built in 1-2 weeks.

9. What about warranty, maintenance, and user support?

12-month warranty against manufacturing defects. Keep it clean and check alignment periodically. Manuals, video guides, and WhatsApp/email tech support are included on-site or video training demos can be arranged.

10. How do I order, pricing, payment, GST, and lead time?

List price is ex-works; GST and freight are added at checkout. No MOQ on standard units. Pay in INR, USD, AED, or any local currency via bank transfer / international card. In-stock units ship in 6-10 working days; custom builds add 1 week.
