Helical Flute & Thread Grinding Fixture

Helical Flute & Thread Grinding Fixture

Rs. 58,000.00
Rs. 58,000.00
Sale Sold out
Shipping calculated at checkout.
Connect on WhatsApp

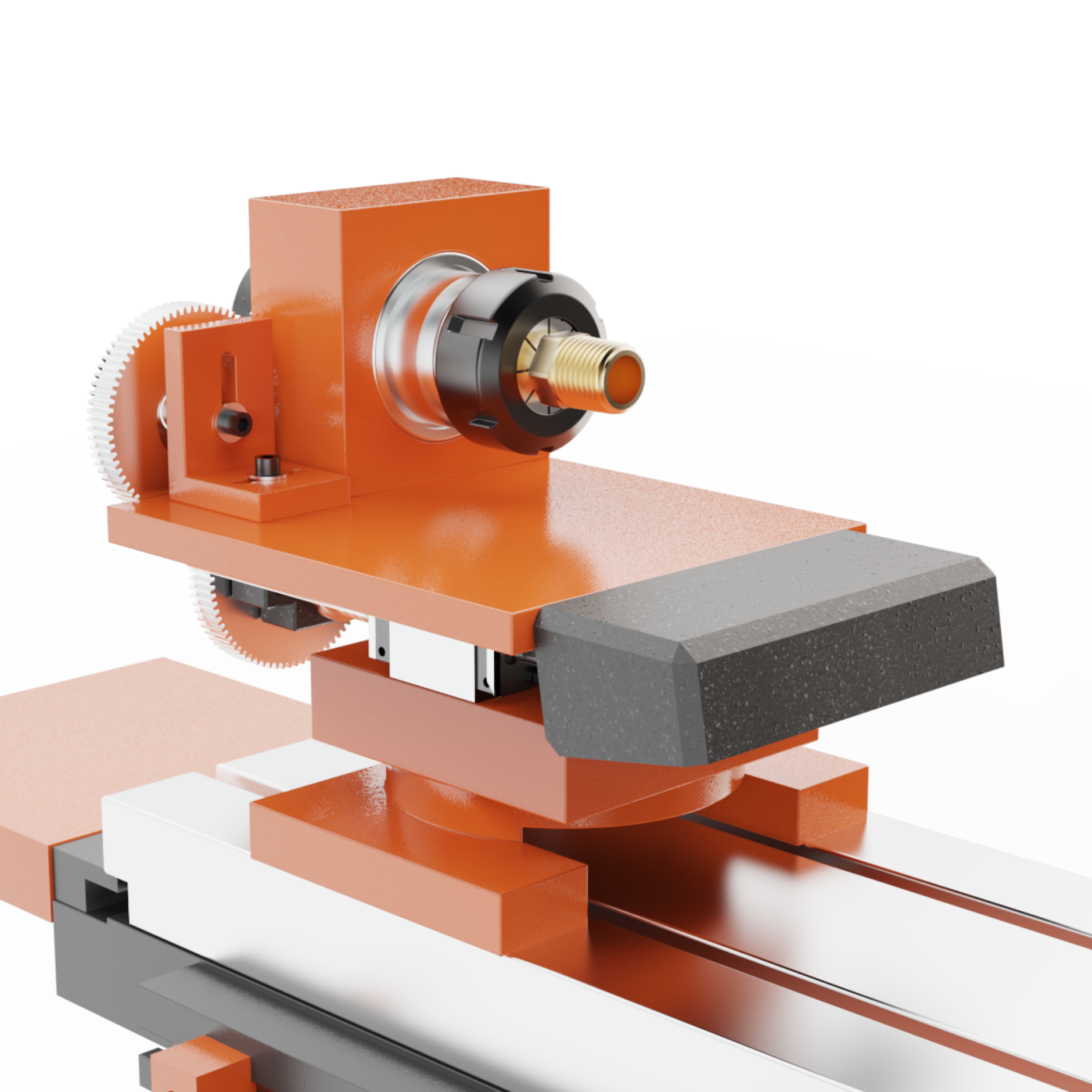

Precision Helical Grinding Fixture for Accurate Fluting & Thread Profiles

  • Multi-Application Grinding Fixture – Designed for helical flute grinding, thread grinding, spiral groove generation, and precision tool reconditioning.
  • Accurate Helix Generation –... Read More

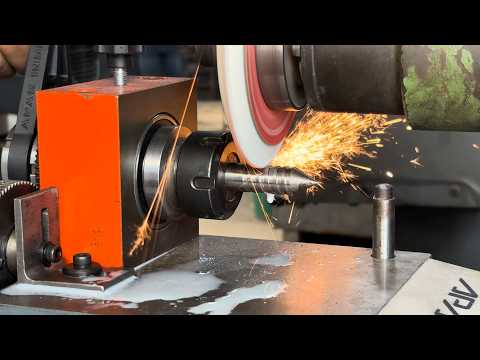

Applications

The Helical Flute & Thread Grinding Fixture is designed to handle a wide range of precision grinding operations involving helical, spiral, and threaded profiles. Its versatility makes it an essential accessory for tool manufacturers, re-sharpening centers, and precision engineering workshops.

  • End Mill Flute Grinding – Generate and re-sharpen helical flutes on end mills with high accuracy.
  • Reamer Fluting – Produce precise spiral flutes for reamers and other cutting tools.

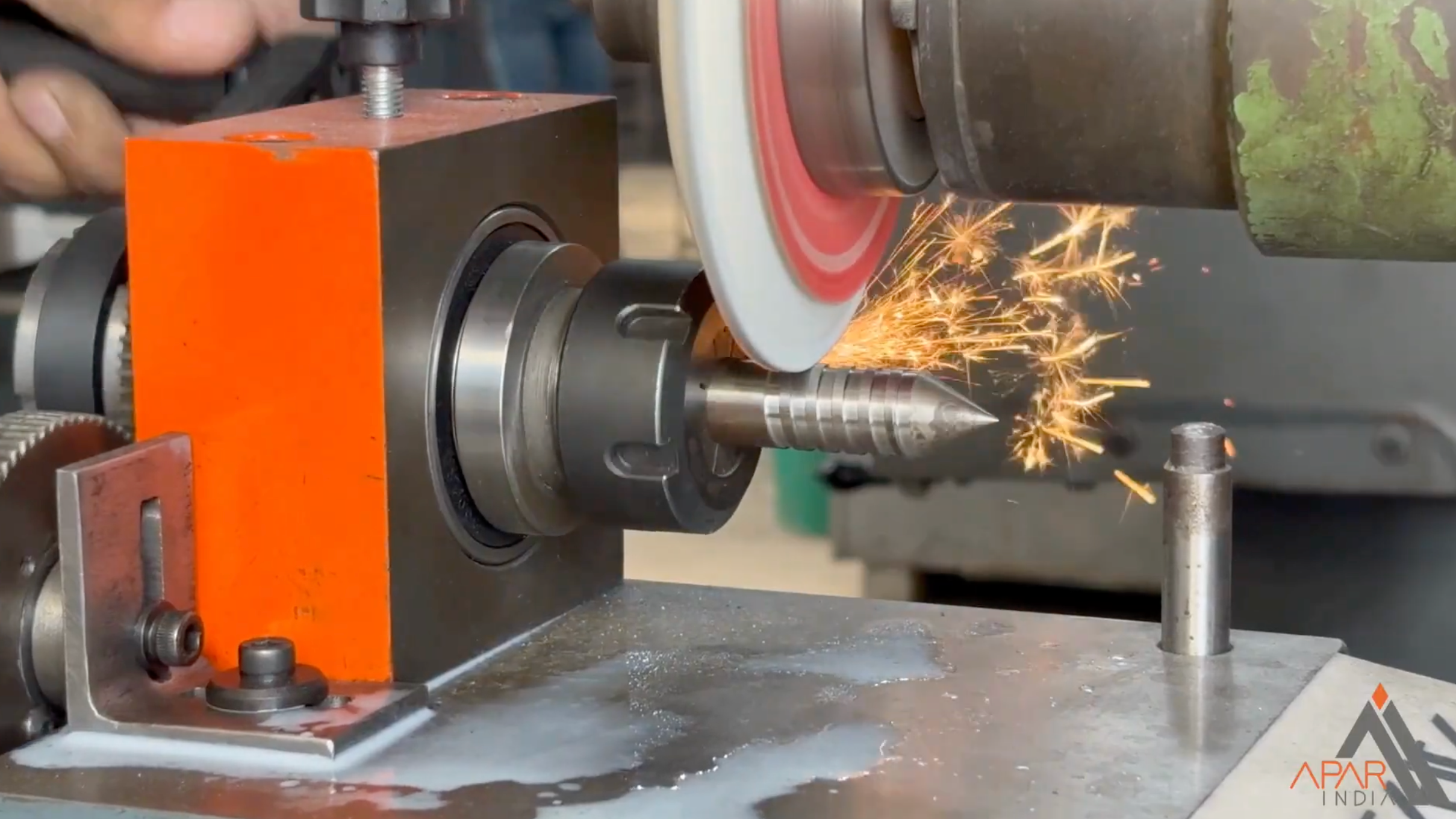

  • Thread Grinding – Grind external and internal thread profiles with consistent pitch and form.
  • Tap Manufacturing & Reconditioning – Create and restore threaded cutting tools for extended service life.
  • Spiral Groove Grinding – Produce accurate helical grooves on cylindrical components and special tools.
  • Drill Flute Grinding – Suitable for manufacturing and re-sharpening drill flutes.
  • Special Purpose Tool Production – Ideal for custom cutting tools requiring specific helix angles and profiles.
  • Tool Re-Sharpening Operations – Restore worn tools to original cutting geometry, reducing replacement costs.
  • Prototype & Development Work – Perfect for tool rooms engaged in new tool design and small-batch production.
  • Precision Engineering Components – Grind helical and threaded features on specialized industrial components.

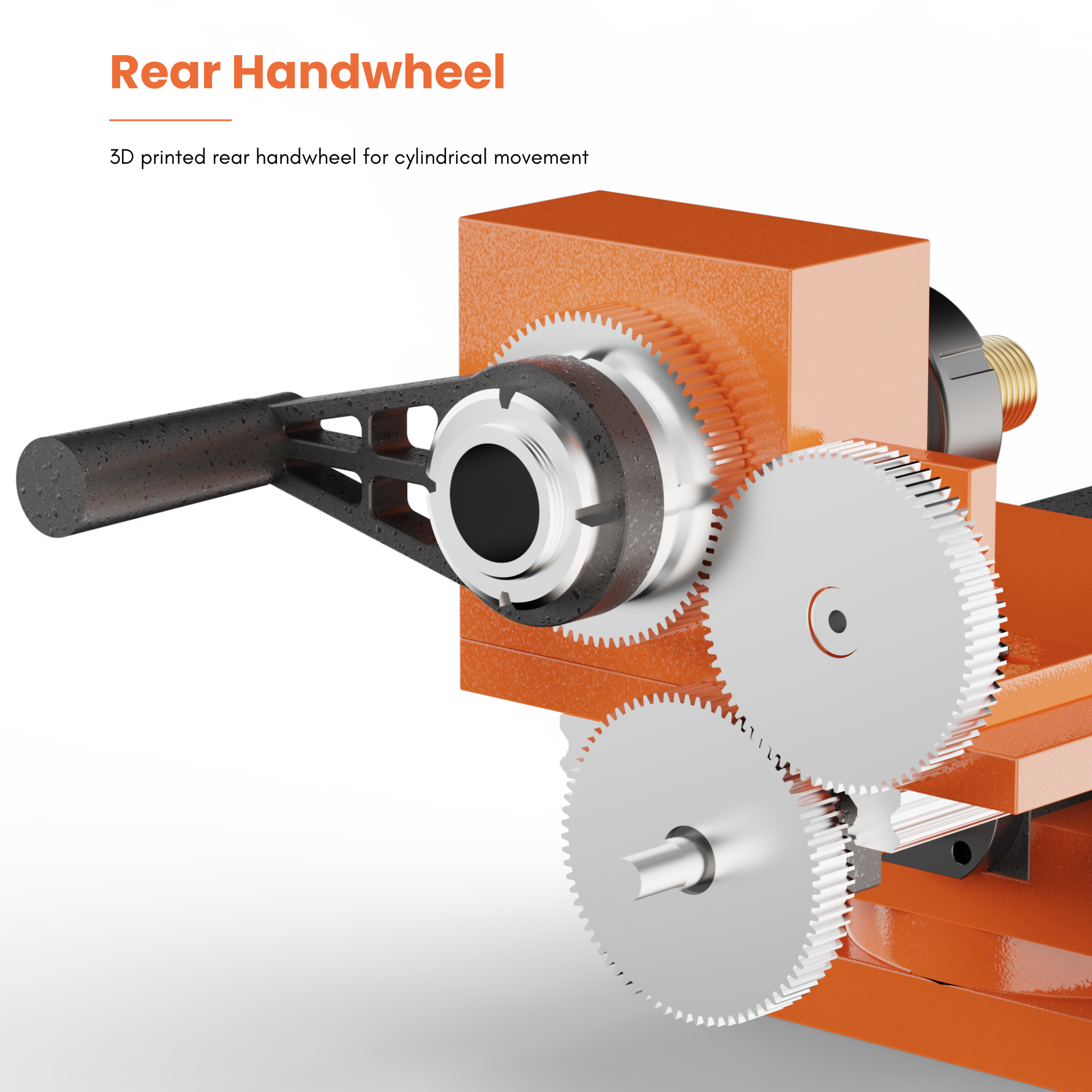

Technical Specification

  • Centre Height - 161mm (approx.)
  • 360° Body Swivel (with step-less locking)
  • 90°+ Head swivel Swivel (with step-less locking)
  • Sealed & Dustproof bearings

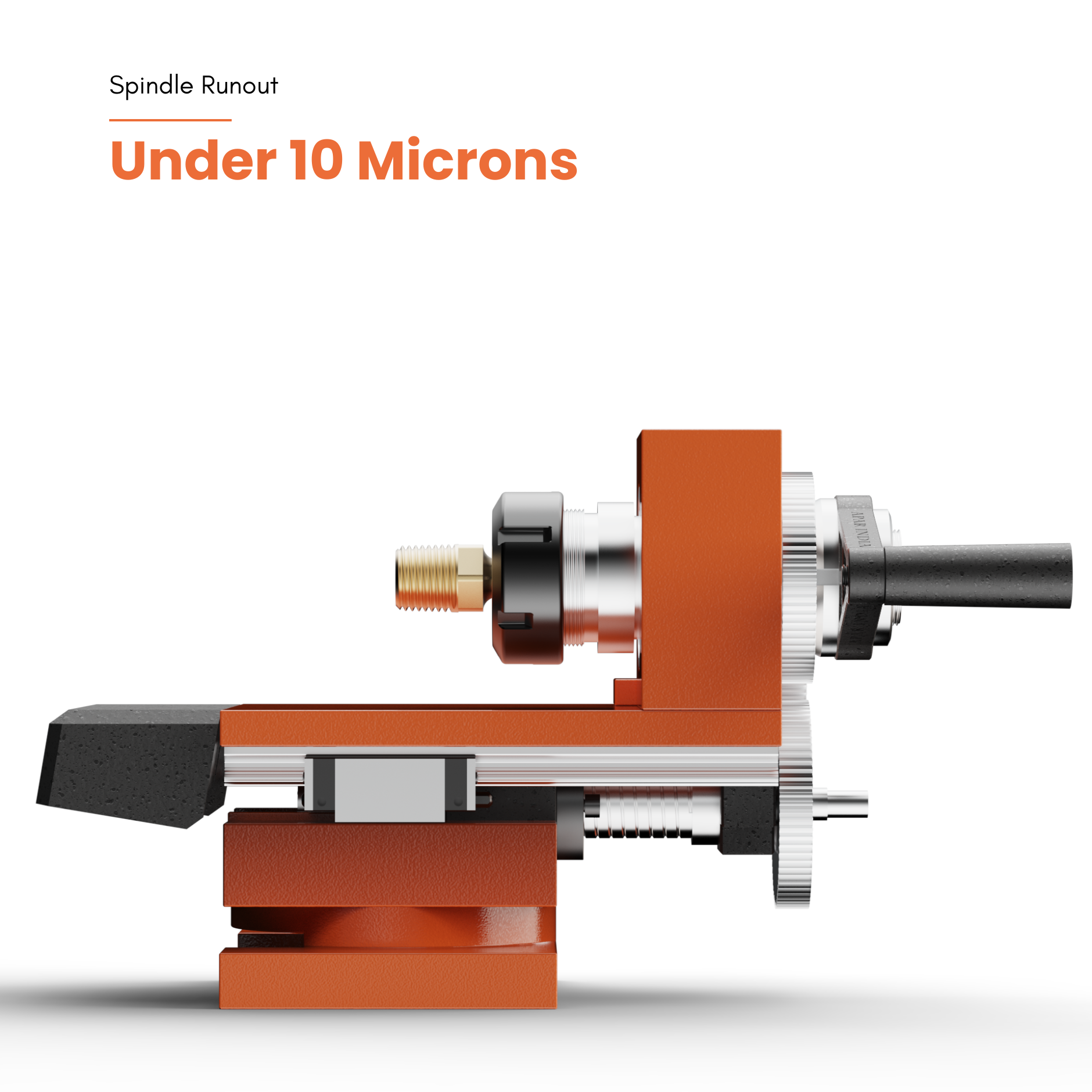

  • Spindle runout - under 10 microns

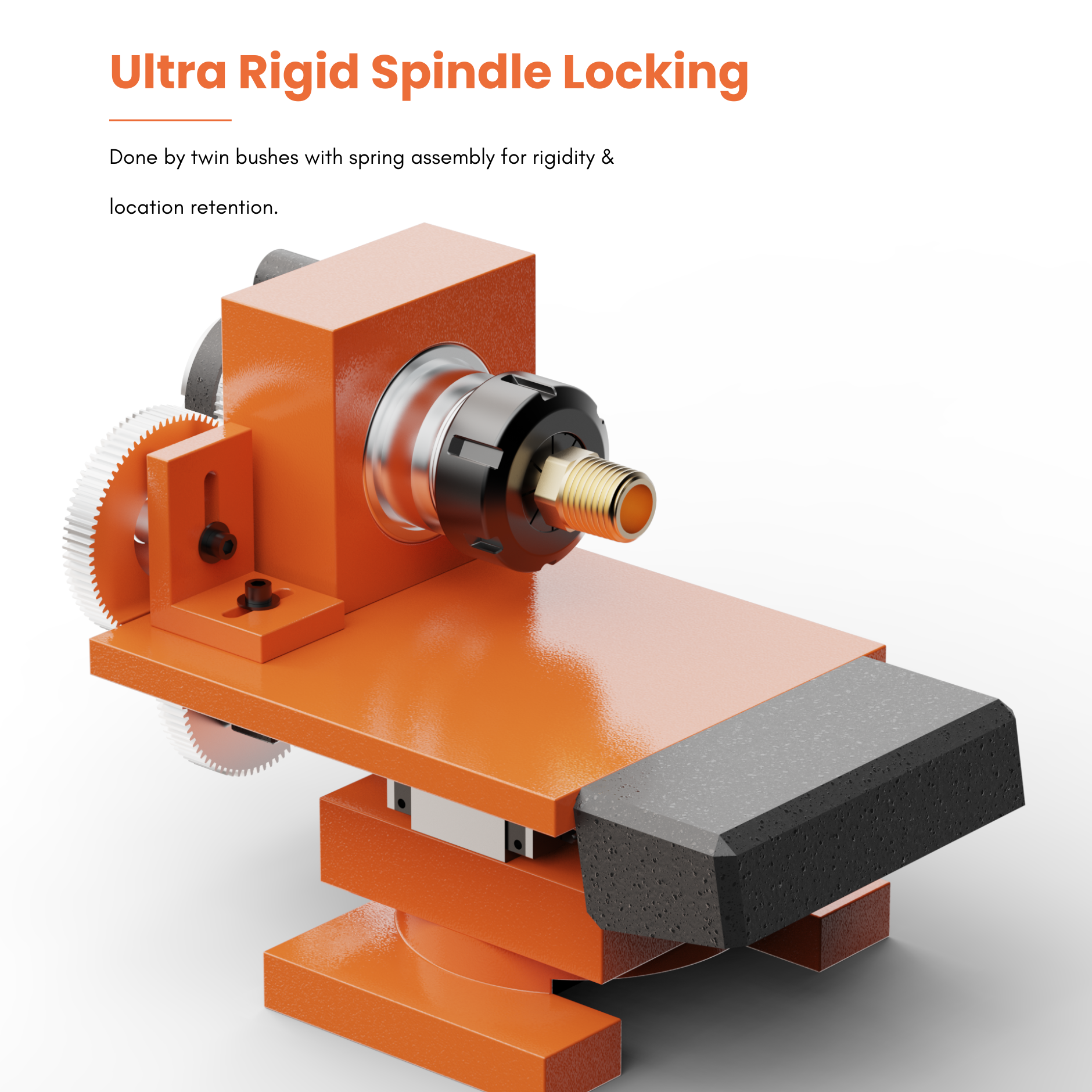

  • Spindle locking is done by twin bushes with spring assemby for rigidity & precision

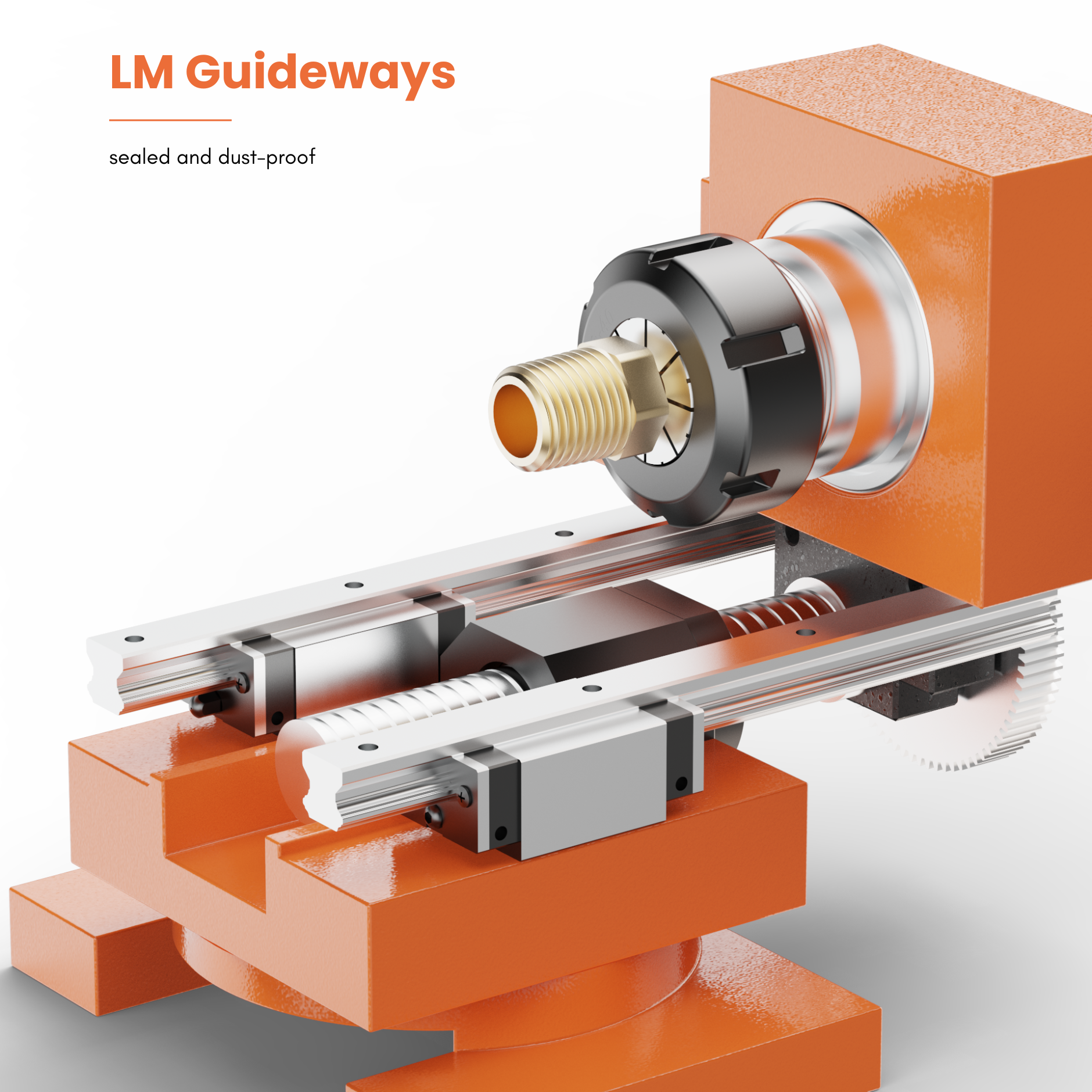

  • Sealed & Dustproof L.M. Guideways
  • Adjustable guide pins
  • Weight - 24.00 Kgs (Approx.)

Dimensions

  • LxBxH - 368mm x 178mm x 205mm (approx.)

Shipping

  • Delivery between 1-2 weeks after order confirmation.

Warranty

  • 1 year against all mechanical parts
View full details
Request A Callback

Frequently asked questions

1. What does the Universal Workhead Fixture do, and which operations can it handle?

It securely holds tools or workpieces for cylindrical and tool grinding, indexing, light milling, drilling, and surface finishing—combining clamping, precision rotation, and quick indexing in one unit.

2. Can I place a bulk or repeat order for resale/distribution?

We welcome B2B inquiries and can offer reseller pricing. Please contact us at info@aparmachines.com

3. Which machines, tapers, and collet/chuck systems is it compatible with?

Fits most Tool & Cutter Grinders, Surface Grinders, conventional and CNC Milling machines, commonly used drilling machines etc. Frequently used as an inspection apparatus too.

4. What precision and capacity can I expect?

Accepts long work pieces (250 mm and more) due to its through bore design (eg. Er32 model has a through bore of 21 mm and ER40 of 27 mm)

5. How adjustable is the head?

Head tilts and swivels for compound-angle grinding or milling; a quick-lock scale lets you dial in and repeat angles fast.

6. Whats the build quality like?

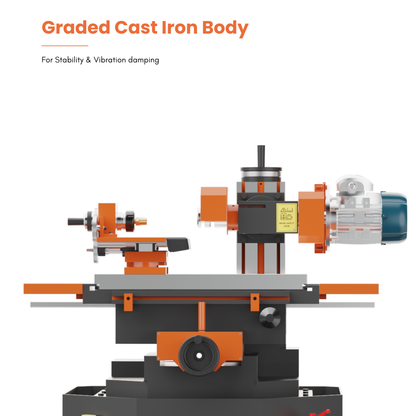

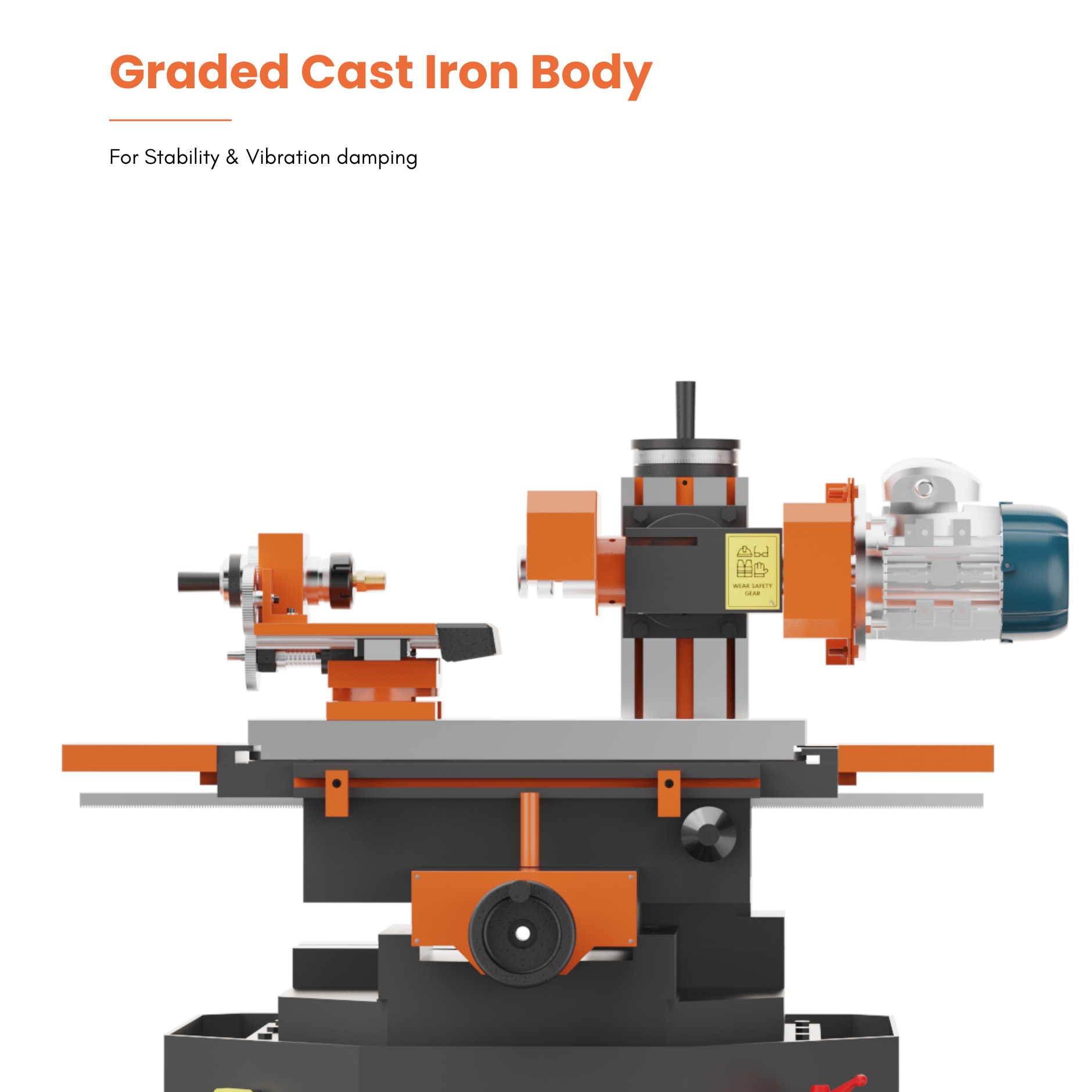

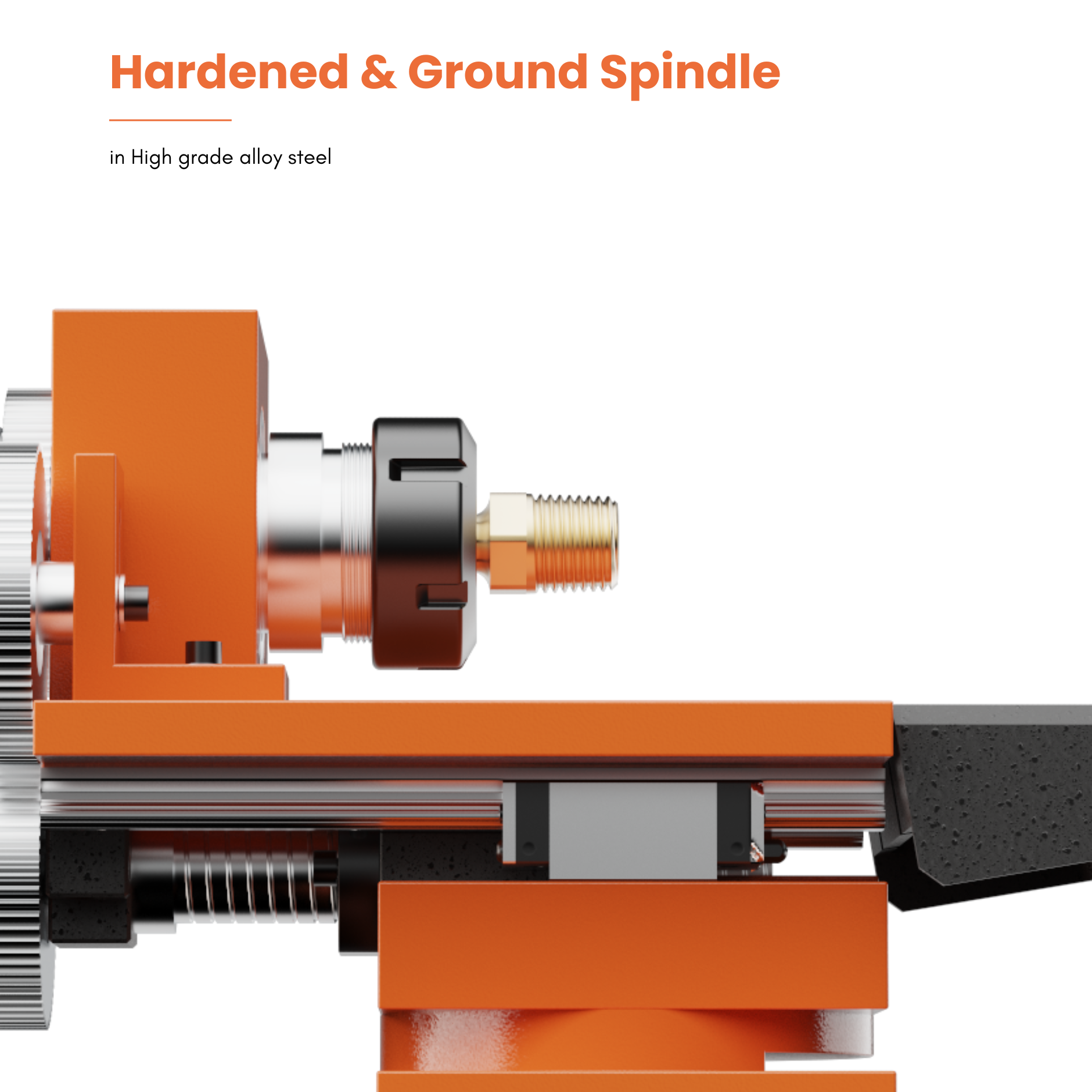

15 kg (approx.) body in precision-ground, stress-relieved cast iron with hardened steel spindles and sealed bearings for protection from grinding dust and coolant helping ensure a long life. Supplied pre-aligned and ready to mount via ground base surfaces with T-slots/bolt holes.

7. Is it suited to high-volume production or toolrooms?

Although, the Universal Workhead is most suitable several toolroom due to its versatility, it's quick indexing and low effort - high torque spindle locking mechanism of spring loaded twin bushes makes its the ideal choice for high-volume production jobs as well.

8. Which accessories, custom options, or spares are available?

ER collets, round chucks, special taper adapters, extra indexing plates, and replacement bearings are stocked. Custom bore sizes or mounting flanges can be built in 1-2 weeks.

9. What about warranty, maintenance, and user support?

12-month warranty against manufacturing defects. Keep it clean and check alignment periodically. Manuals, video guides, and WhatsApp/email tech support are included on-site or video training demos can be arranged.

10. How do I order, pricing, payment, GST, and lead time?

List price is ex-works; GST and freight are added at checkout. No MOQ on standard units. Pay in INR, USD, AED, or any local currency via bank transfer / international card. In-stock units ship in 6-10 working days; custom builds add 1 week.
