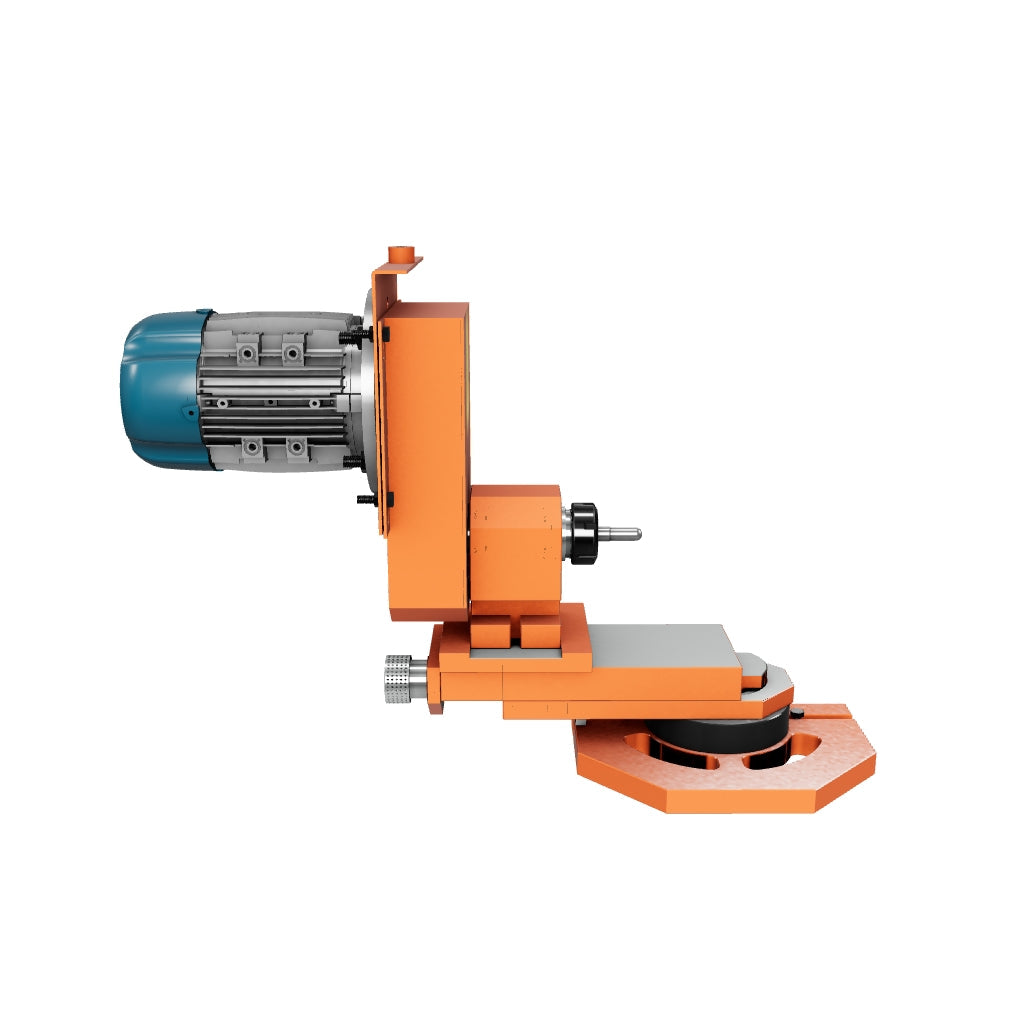

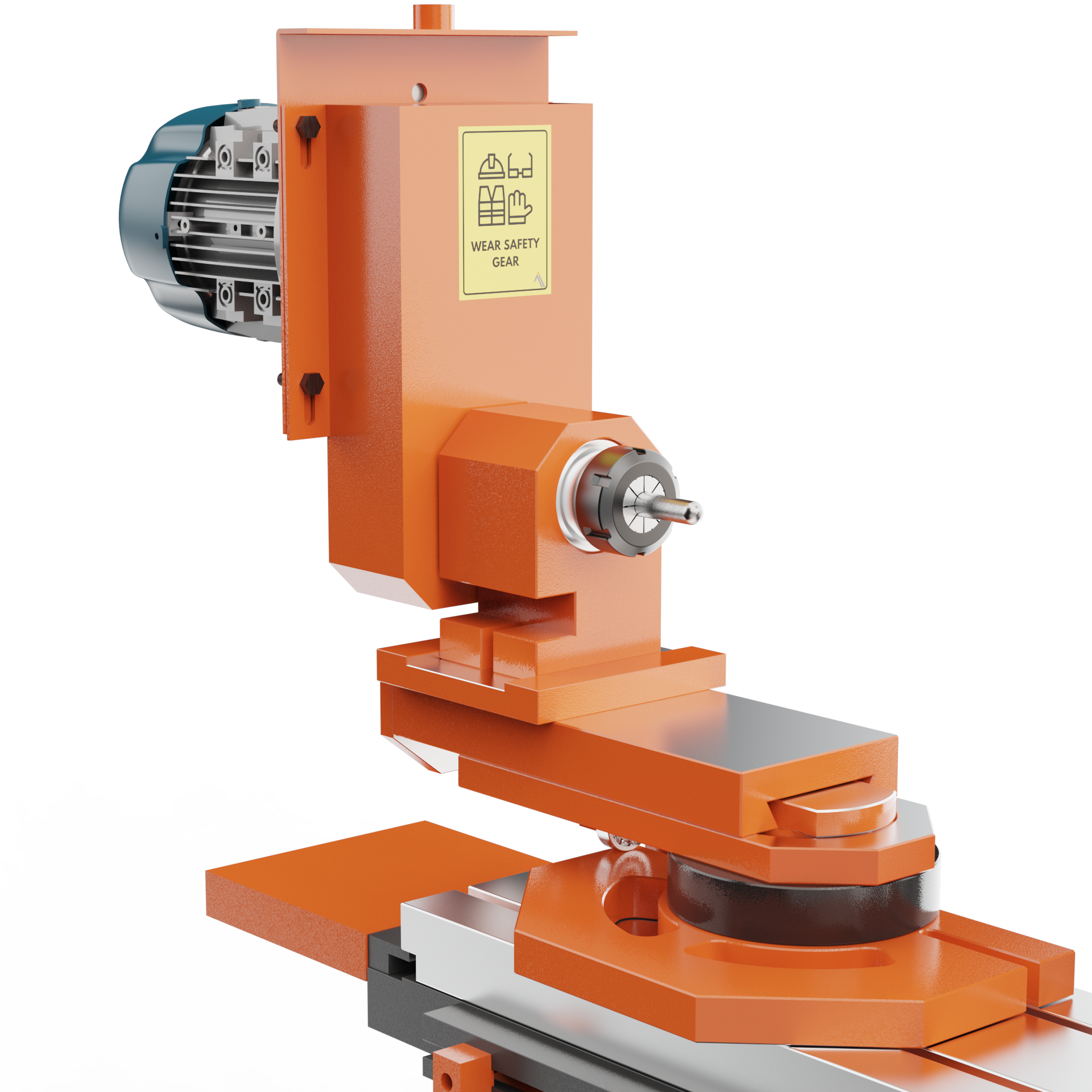

Radius Grinding Fixture - Motorised

Rs. 67,000.00

Sale Sold out

Shipping calculated at checkout.

Quantity

Plug-in. Precise. Practical.
Upgrade your grinding operations with the Motorised Radius Grinding Fixture by Apar India – engineered for tool rooms, die shops, R&D labs, and exporters who require accuracy, versatility, and consistency.

Applications – One Fixture, Multiple Jobs

This radius grinding fixture is designed for concave and convex profile grinding,... Read More

Applications

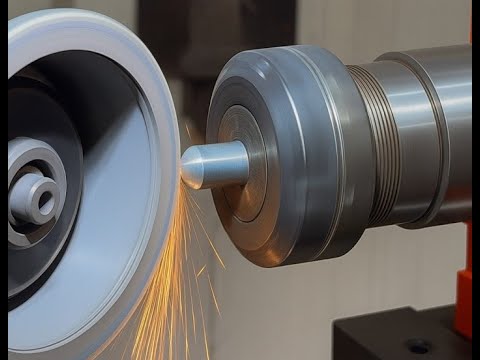

This radius grinding fixture is designed for concave and convex profile grinding, making it the ideal choice for precision machining of:

Cutting Tools
Punches & Dies
EDM Electrodes
Gauges & Pins
Diamond Wheel Profiles
Mould Inserts
Medical Implants
Automotive Components
Fasteners & Rods

Technical Specifications

Centre Height - 161mm (approx.)
180° Body Swivel (with step-less locking)

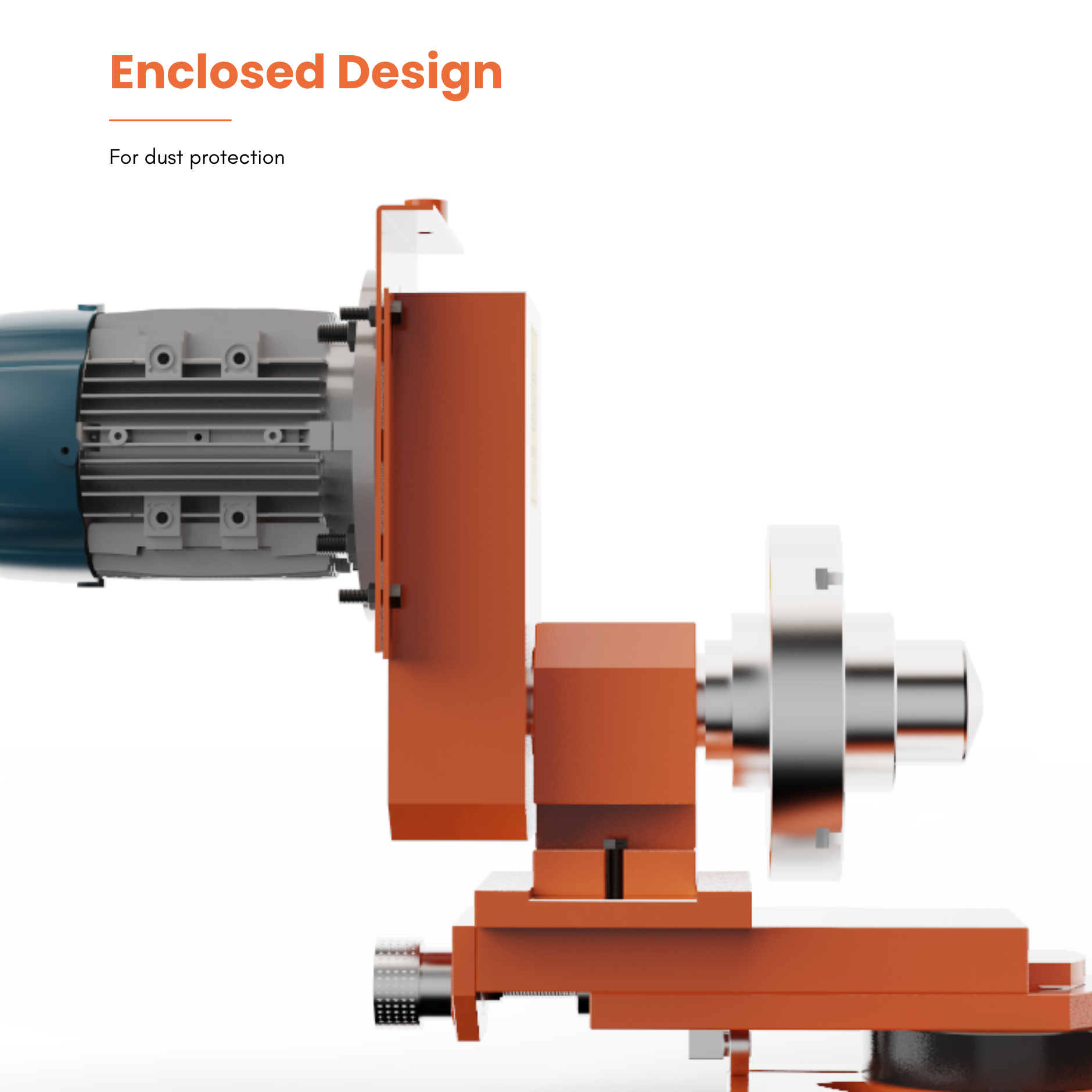

Sealed & Dustproof bearings

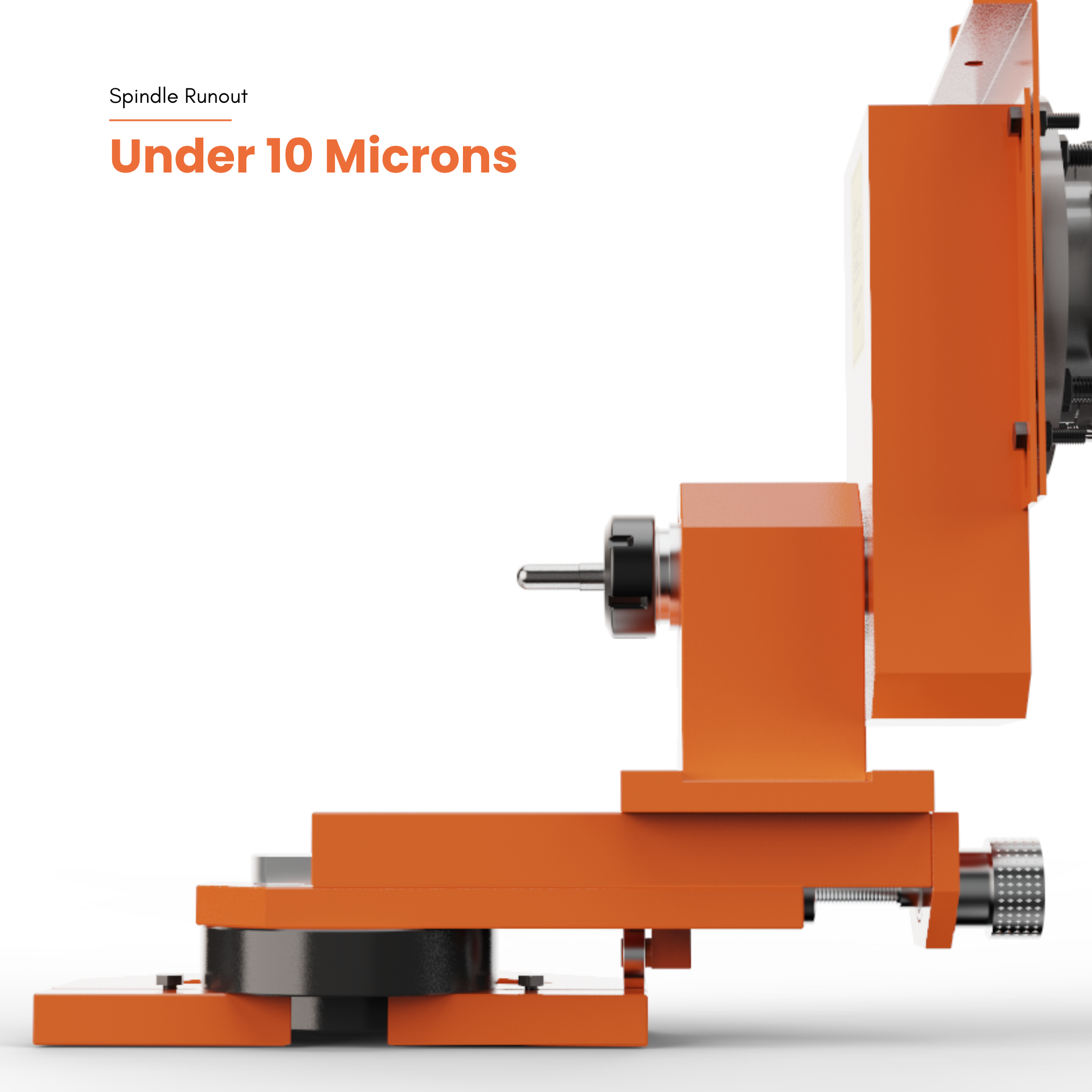

Spindle runout - under 10 microns
Spindle locking is done by twin bushes with spring assemby for rigidity & precision

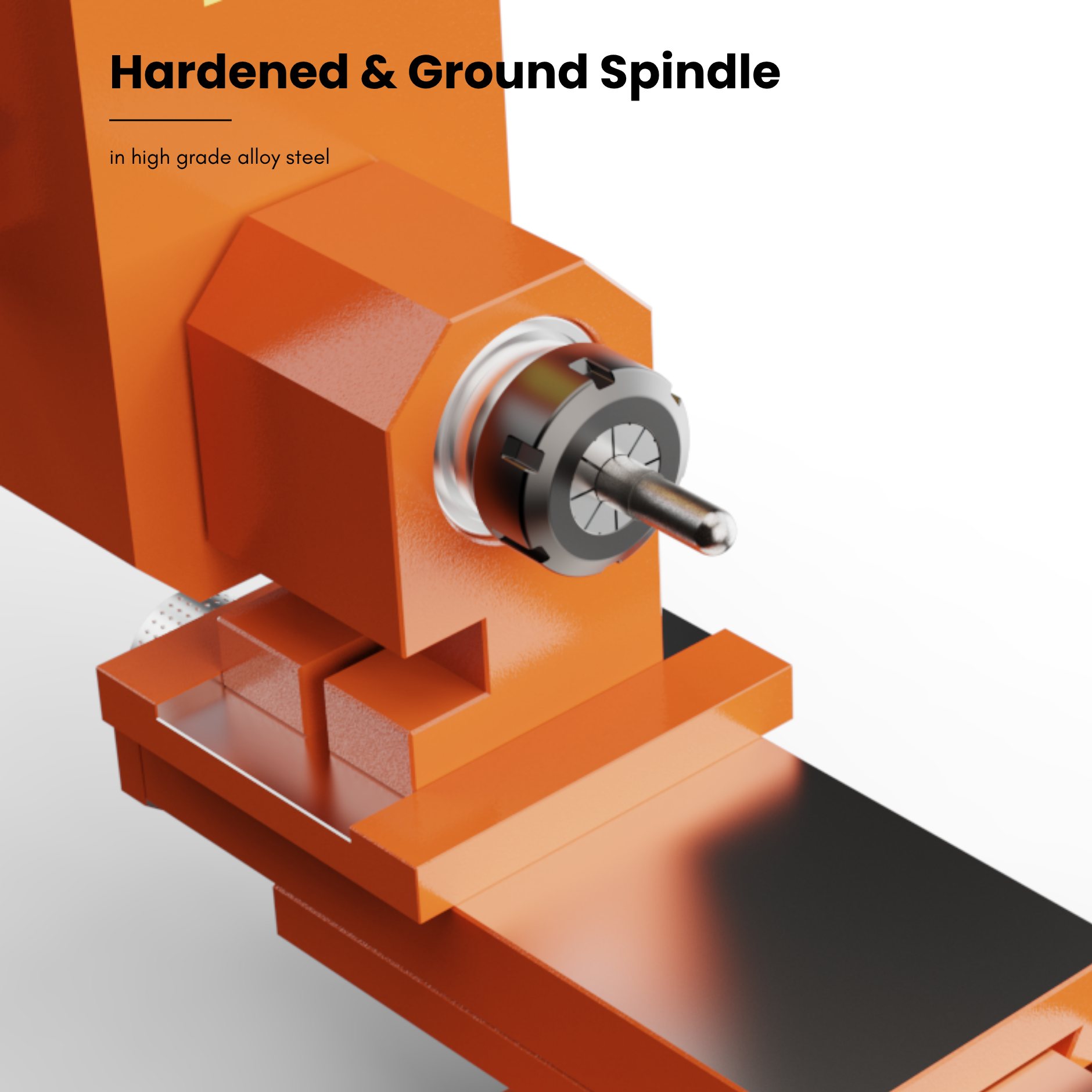

Hardened and ground Spindle in high grade alloy steel

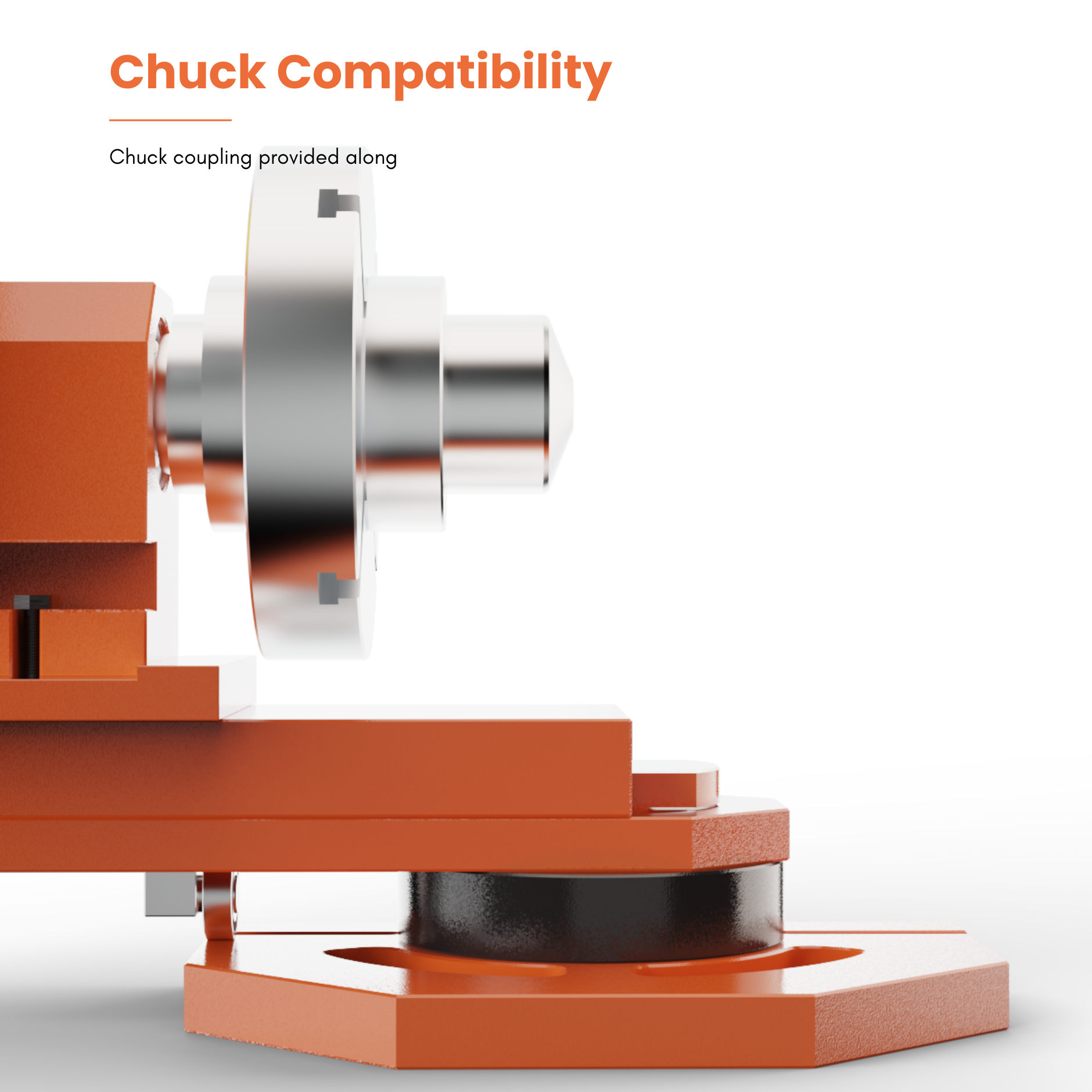

Compatible with Chuck
Spring loaded indexing assembly with quick change indexing plates
Adjustable guide pins
Weight - 27.00 Kgs (Approx.)
