Straight Workhead Fixture
Straight Workhead Fixture
Regular price
Rs. 21,500.00
Regular price
Sale price
Rs. 21,500.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Connect on WhatsApp

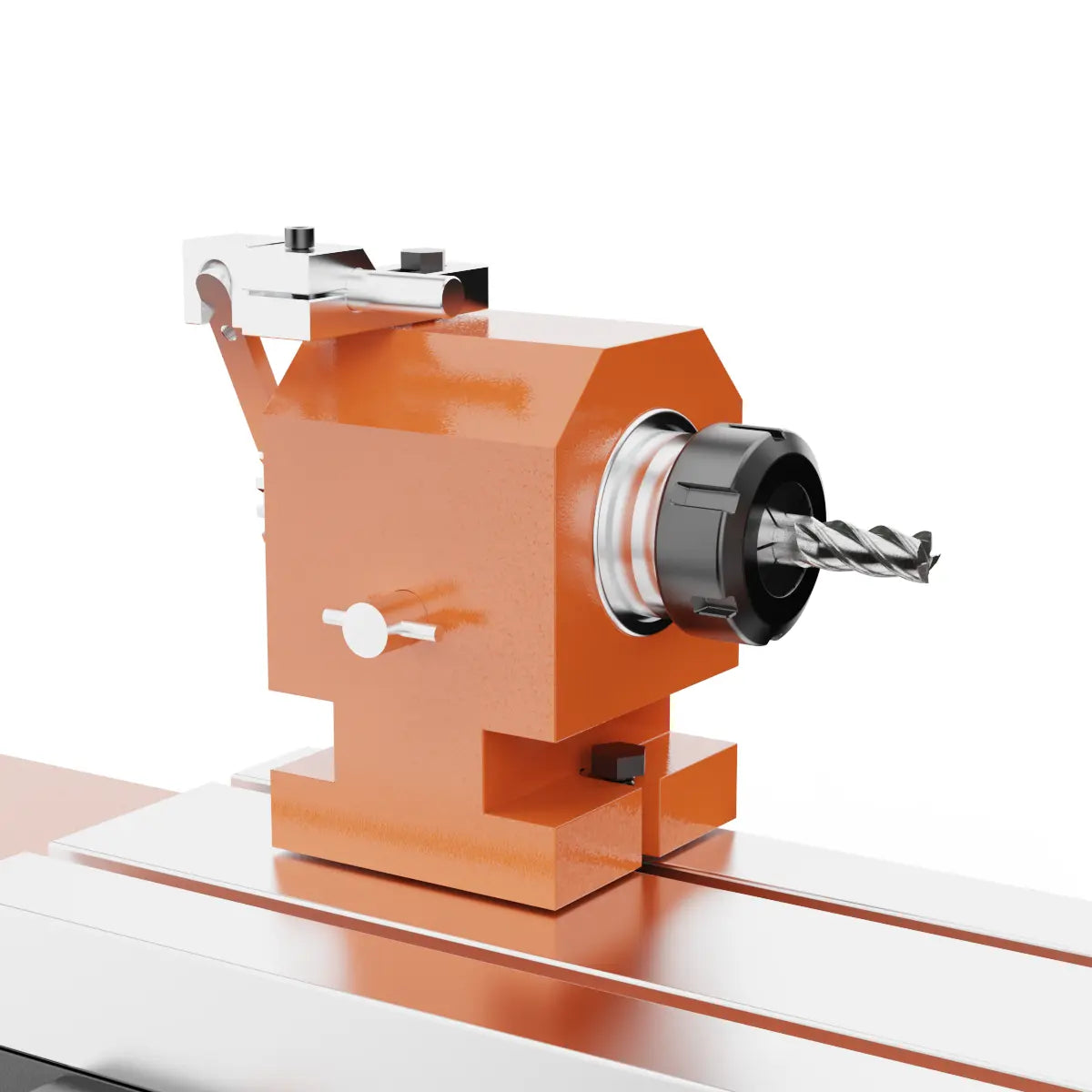

Optimize your endmill resharpening process with our Straight Workhead fixture. Expertly designed for straight and precise work, it maximizes the accuracy and efficiency of your endmill resharpening. Save time and improve the quality of your work with our professional-grade fixture.
Technical Specifications
Technical Specifications
- Centre Height - 104mm (Approx.)
- Sealed & Dustproof bearings

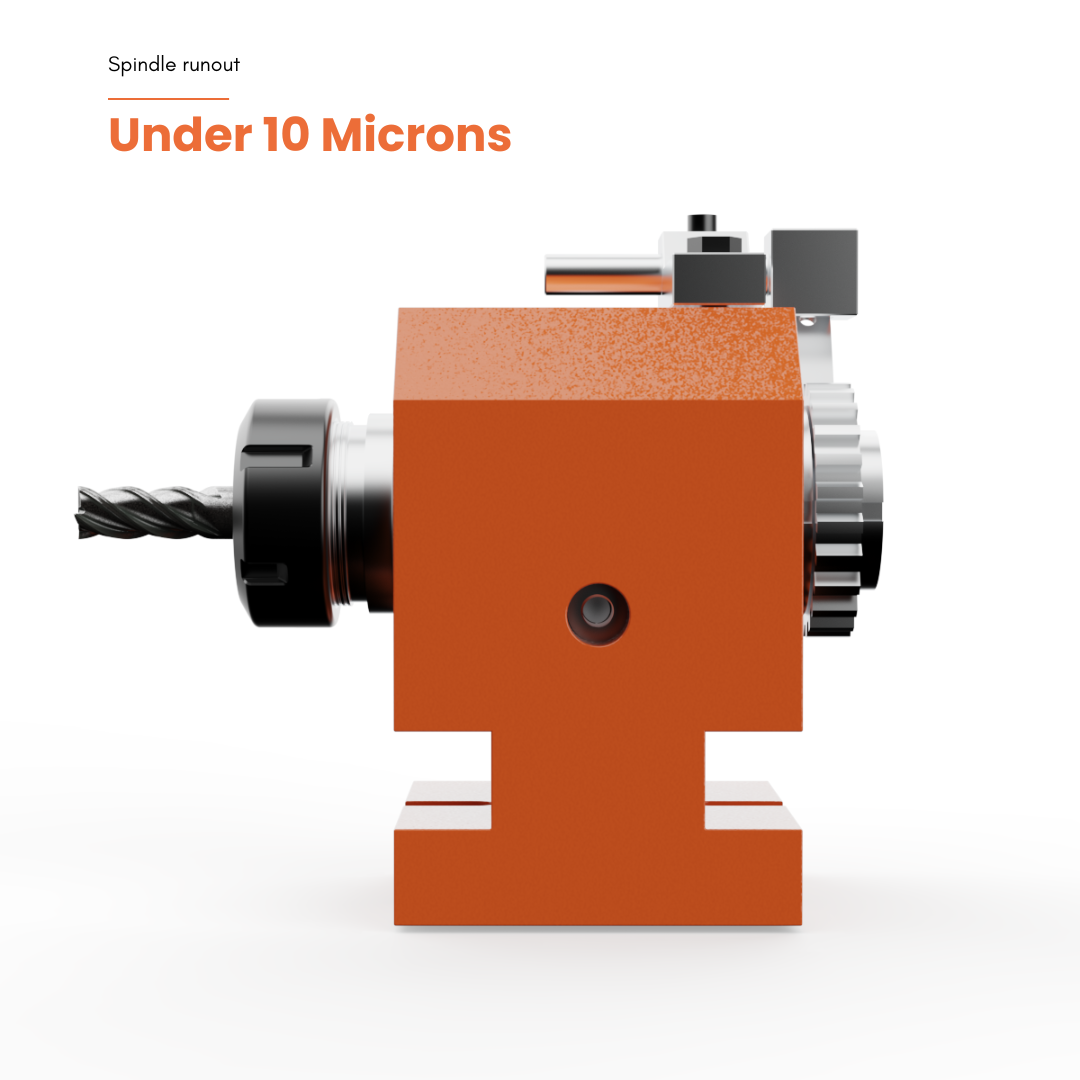

- Spindle runout - under 10 microns

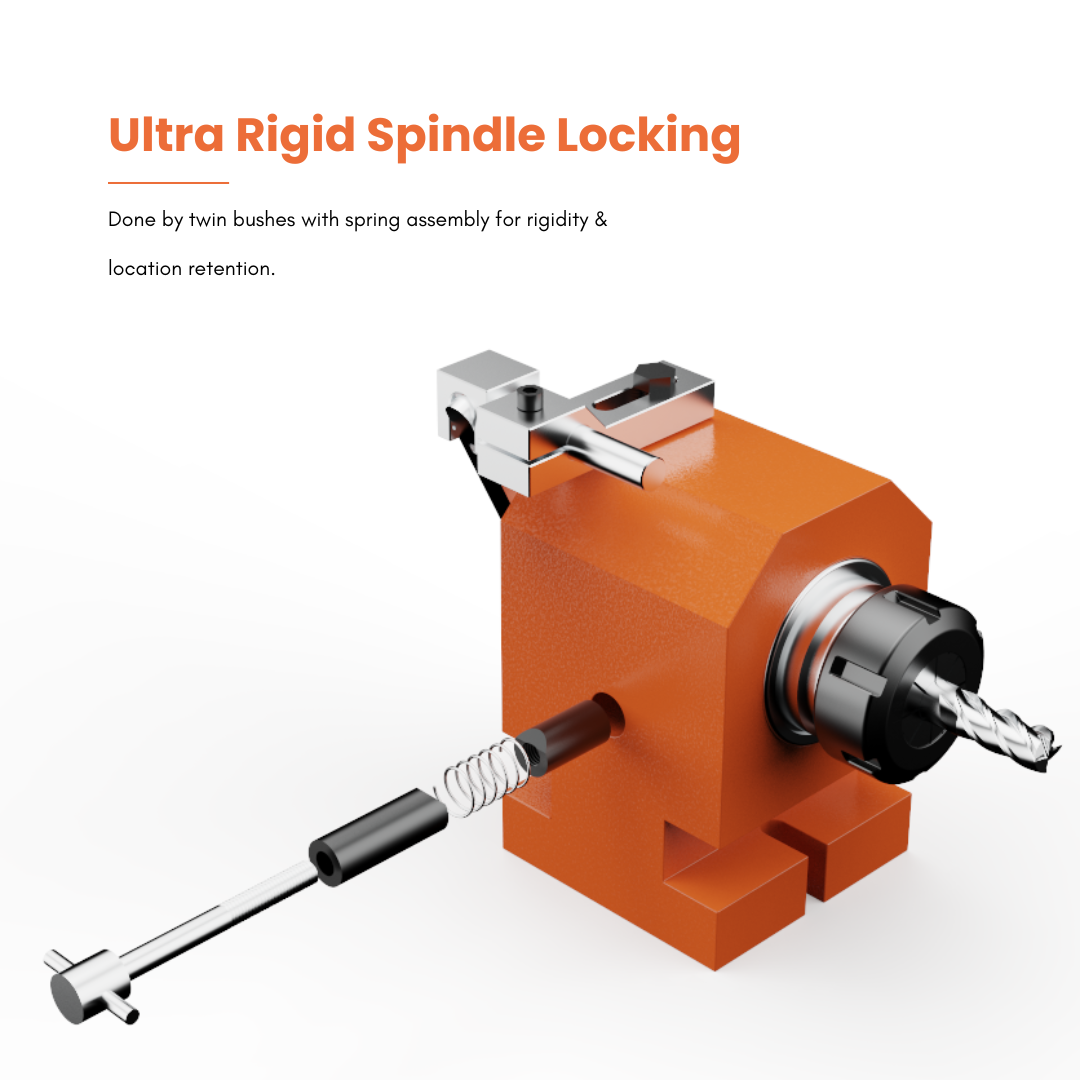

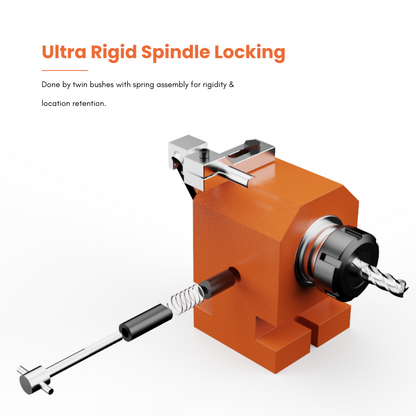

- Spindle locking is done by twin bushes with spring assemby for rigidity & location retention

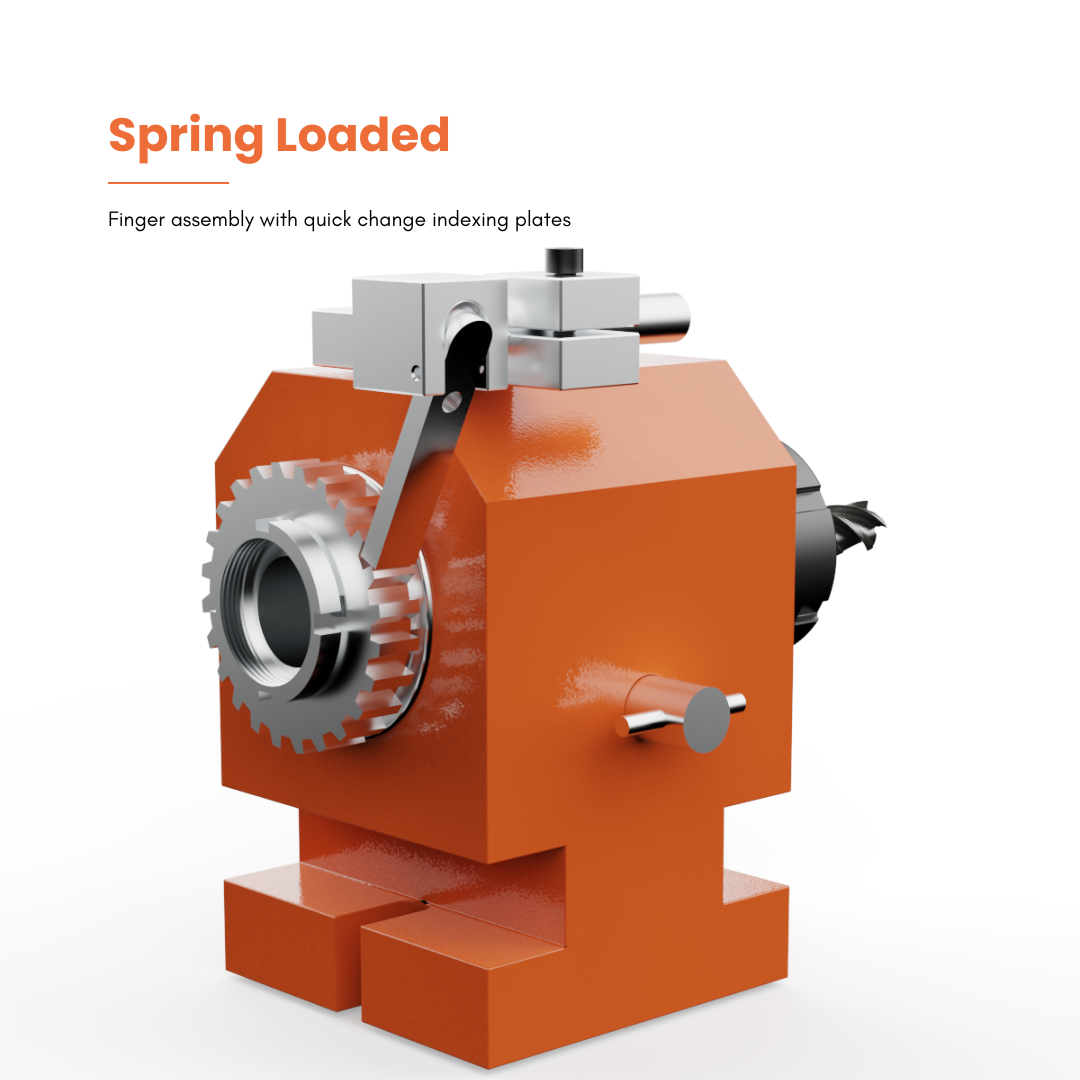

- Spring loaded indexing assembly with quick change indexing plates
- Adjustable guide pins
- Weight - 10.00 Kgs (Approx.)
Dimensions
Dimensions

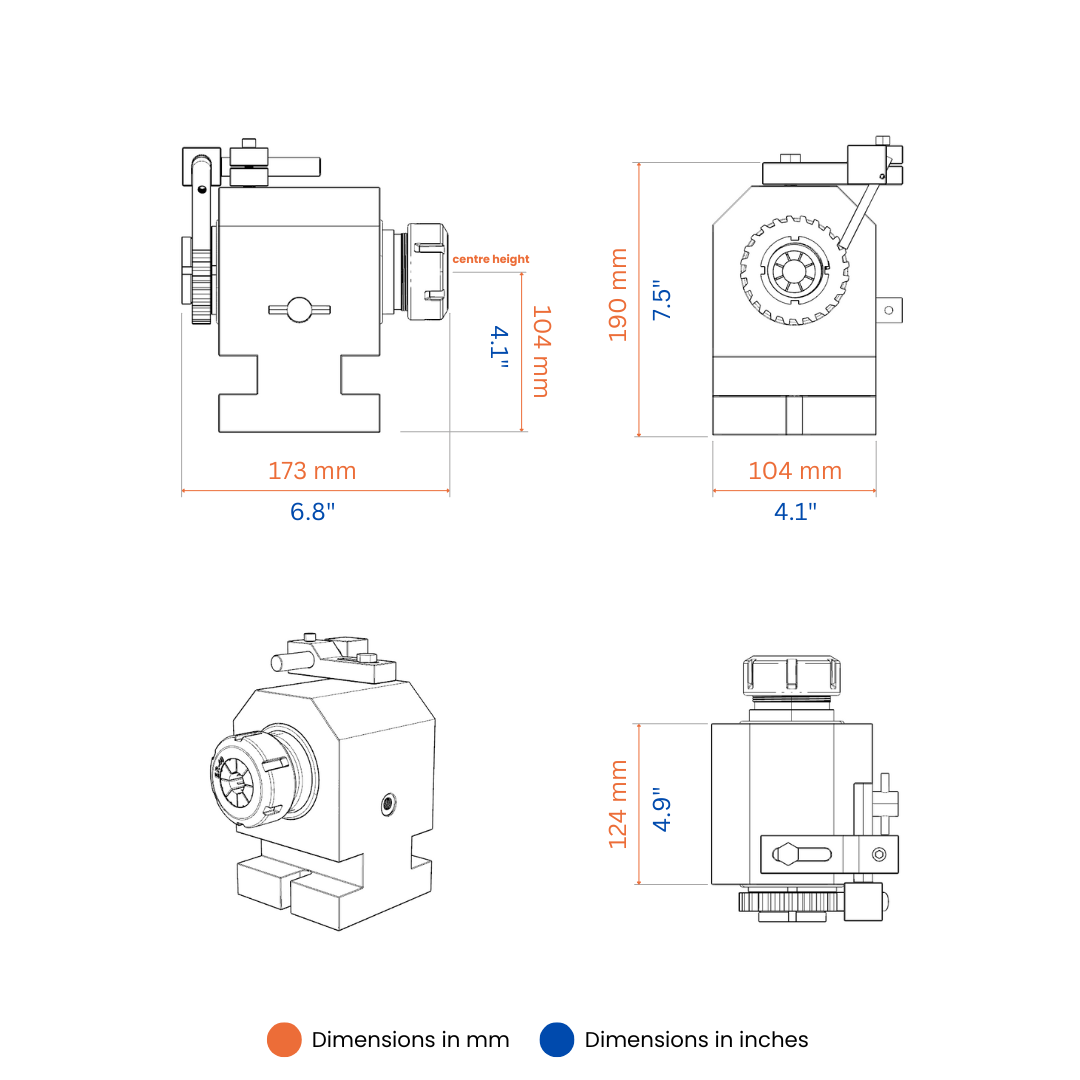

- LxBxH - 173mm x 124mm x 104mm (approx.)
Shipping
Shipping
- Delivery between 1-2 weeks after order confirmation.
Warranty
Warranty
- 1 year against all mechanical parts
