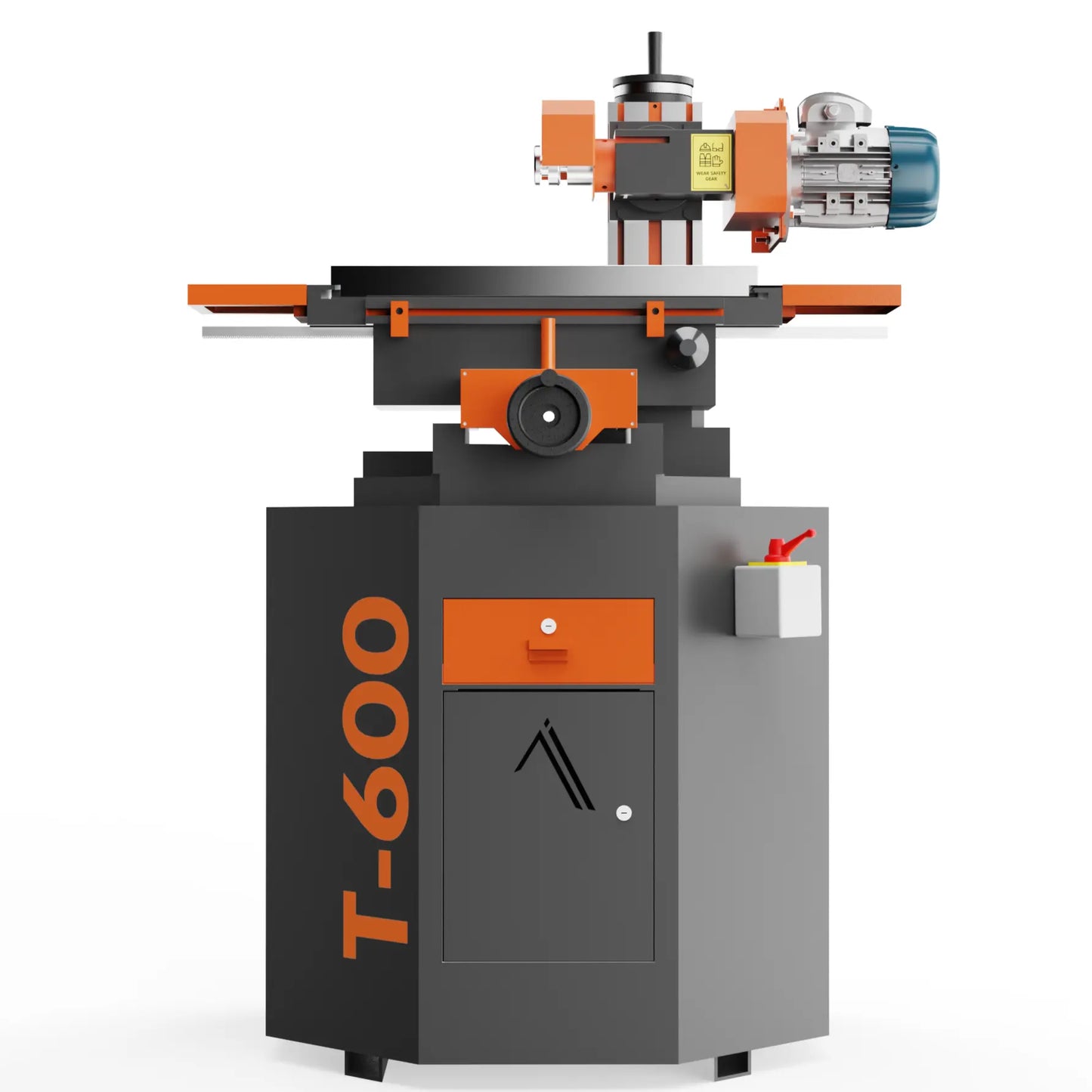

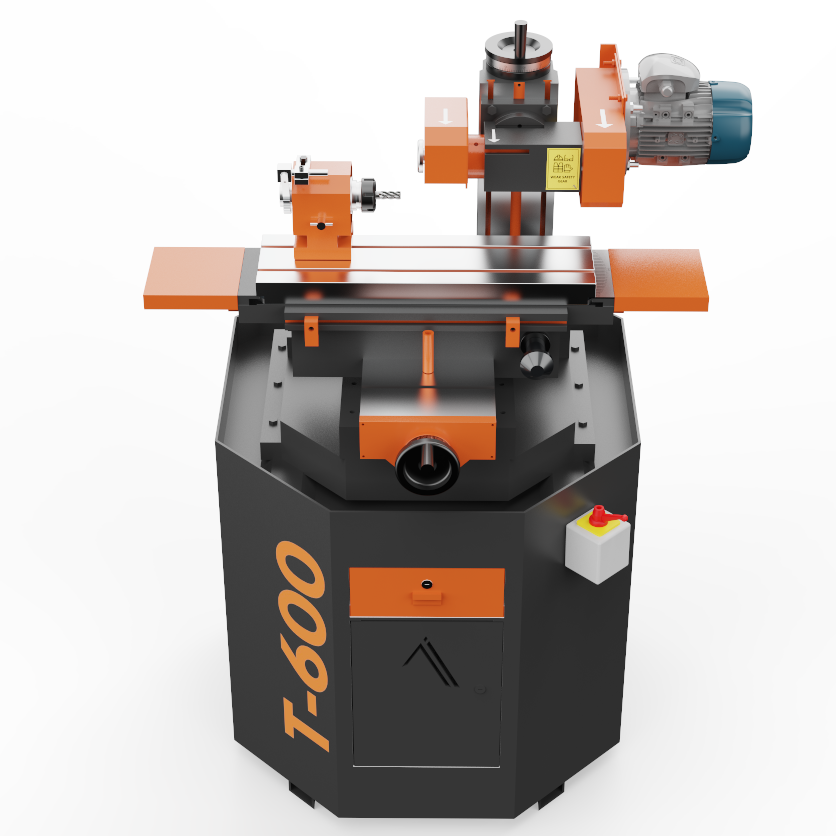

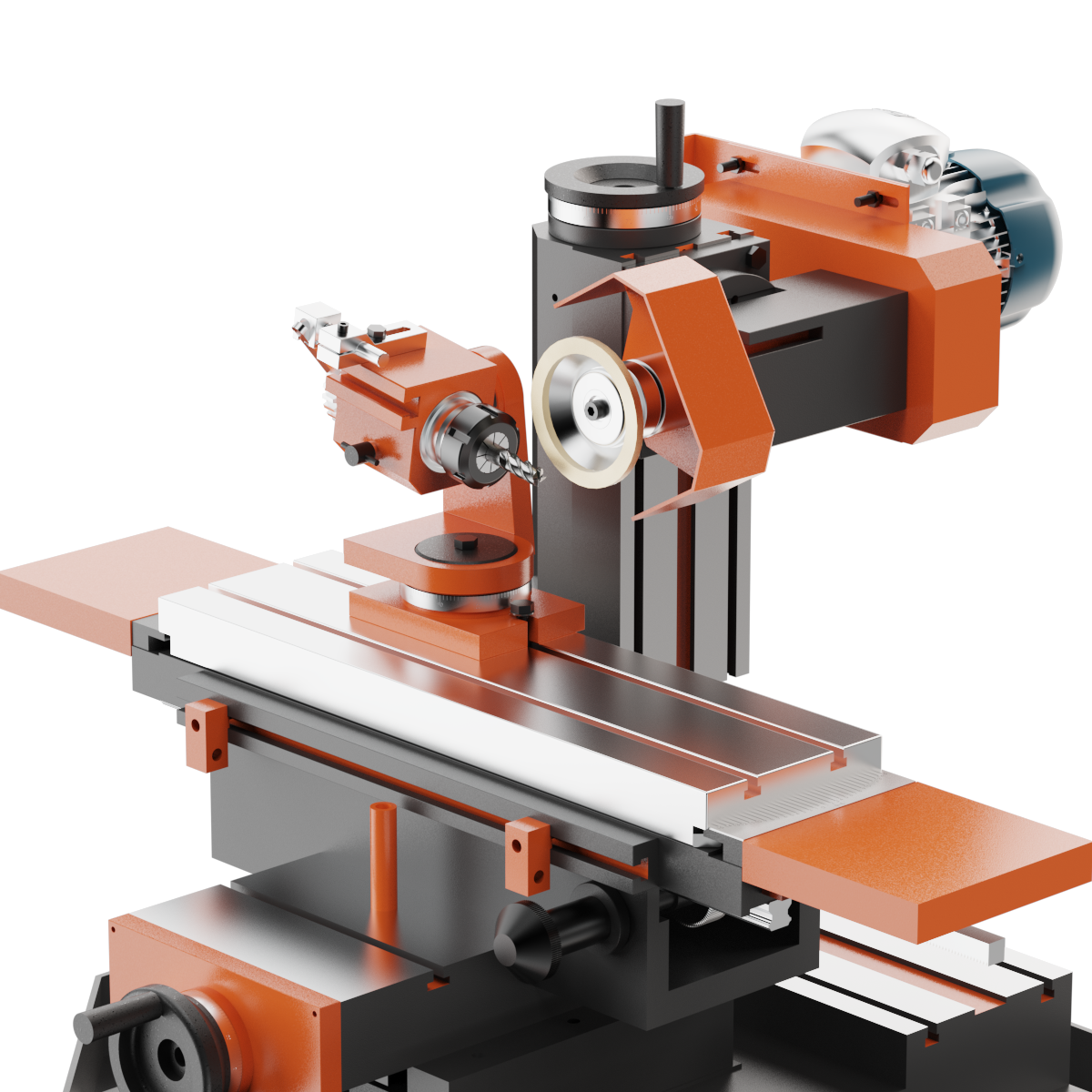

T-600 Tool and Cutter Grinding Machine

The T-600 Tool and Cutter Grinding Machine is a versatile and precise piece of equipment used in tool rooms and manufacturing settings for sharpening, reconditioning, and sometimes producing a wide variety of cutting tools. Its applications are mainly in the machining and manufacturing industries.

Here are the main applications of the T-600 Tool and Cutter Grinding Machine:

🔧 1. Sharpening Cutting Tools

• Endmills
• Drill Bits
• Reamers
• Taps
• Form Tools

🛠️ 2. Reconditioning Worn Tools

• Regrinding tools to extend their lives
• Restoring geometry to worn-out tools to save cost and reduce waste.

📏 3. Precision Grinding

• Suitable for complex geometries and precise angles.
• Ideal for tool profiles that need exact rake and clearance angles.

🪚 4. Manufacturing Custom Cutting Tools

• Used to grind special-purpose tools that are not available off-the-shelf.
• Great for prototyping or small-batch production of custom tooling.

🖋️ 5. Surface and Cylindrical Grinding (Limited)

• Can perform limited cylindrical and surface grinding tasks, especially for tool shanks or tool faces.

🧰 6. Grinding Multi-Flute Tools

• Capable of grinding complex tools like multi-flute drills or end mills with spiral geometry.

🧪 7. Used in Tool Rooms and R&D

• Ideal for small-scale tool production, tool repair, and research on cutting tool performance.

🏭 8. Support in CNC and Conventional Machining

• Ensures consistent quality and sharpness of tools used in CNC machines, improving productivity.

Restoring geometry to worn-out tools to save cost and reduce waste.Restoring geometry to worn-out tools to save cost and reduce waste.

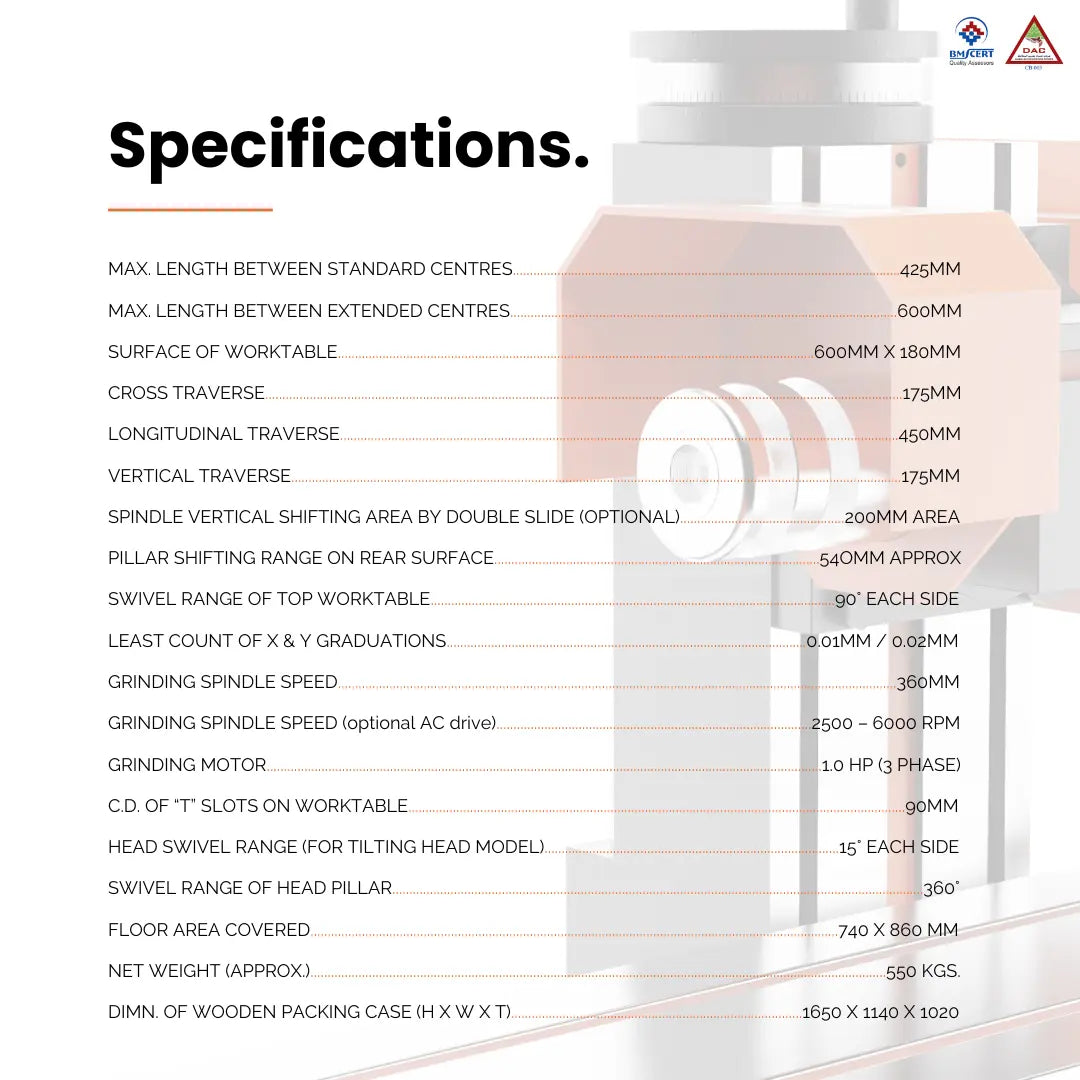

• Max. length between standard centres - 425mm
• Max. length between extended centres - 600mm
• Surface of worktable - 600mm X 180mm

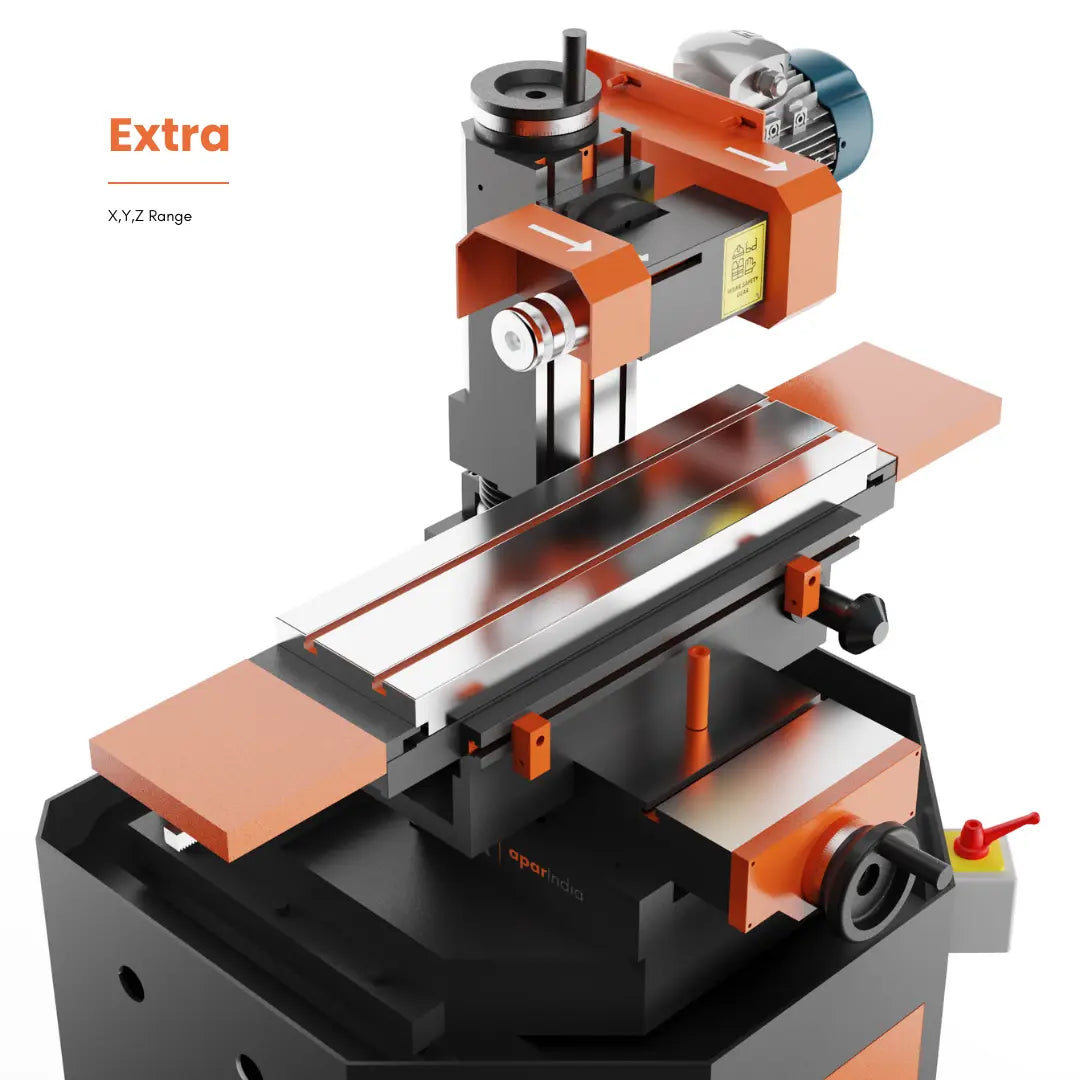

• Cross traverse - 175mm
• Longitudnal traverse - 450mm
• Vertical traverse - 175mm

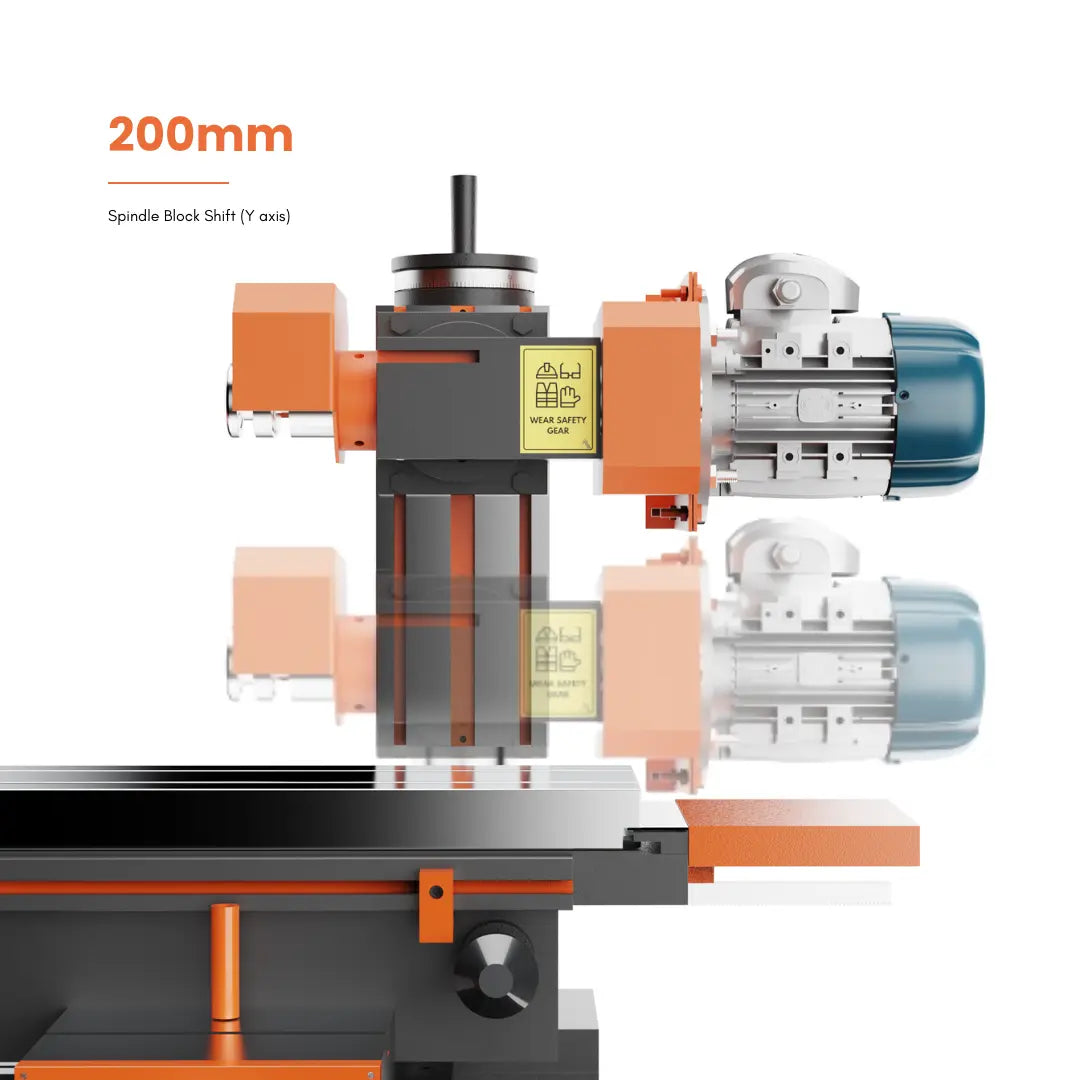

• Spindle vertical shifting area by double slide (optional) - 200mm area

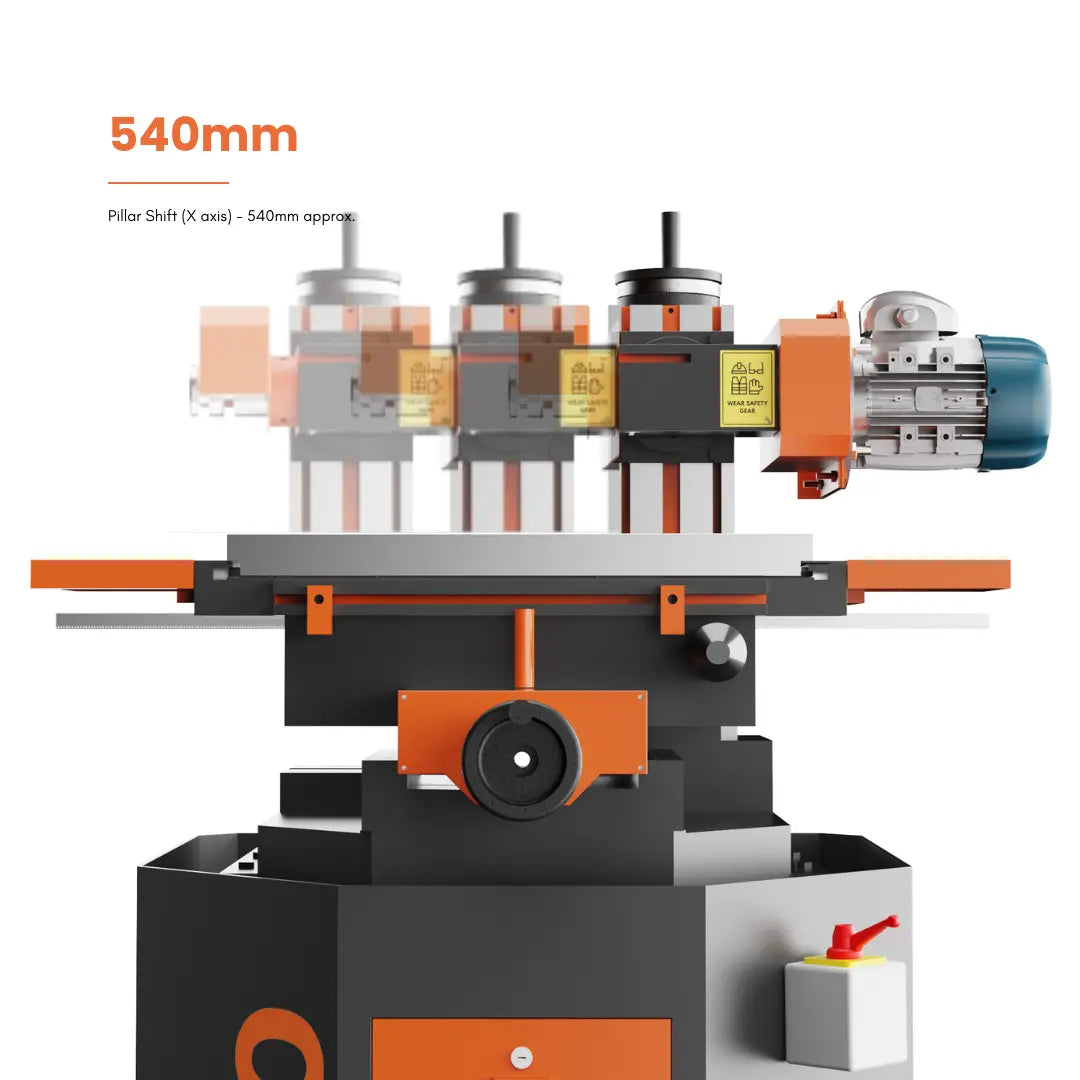

• Pillar shifting range on rear surface - 540mm approx.
• Swivel range of top worktable - 45° each side
• Least count of X & Y graduations - 0.01mm / 0.02mm

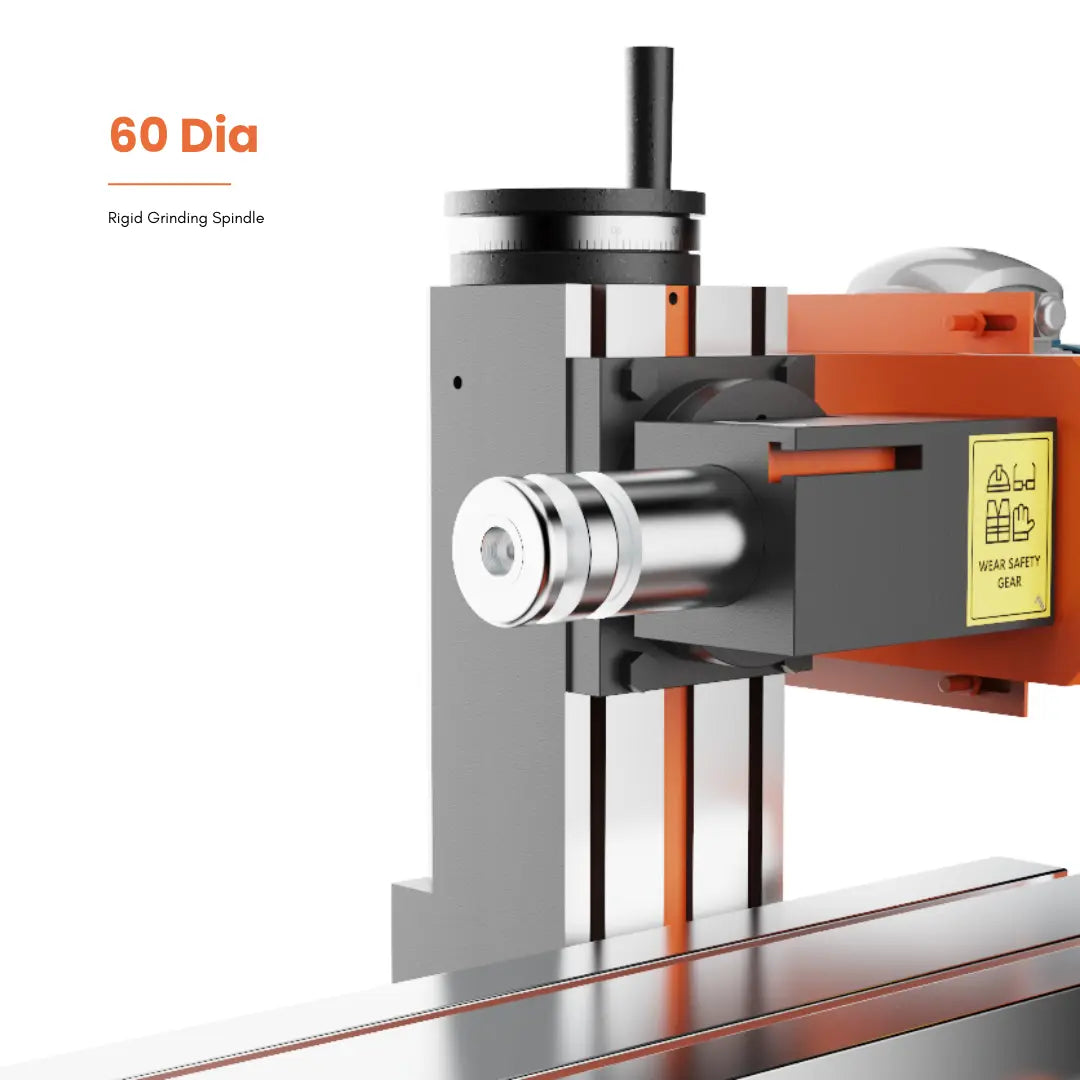

• Grinding spindle speed - 3600 RPM
• Grinding spindle speed (optional AC drive) - 2500 – 6000 RPM
• Grinding motor - 1.0 HP, 3 Phase

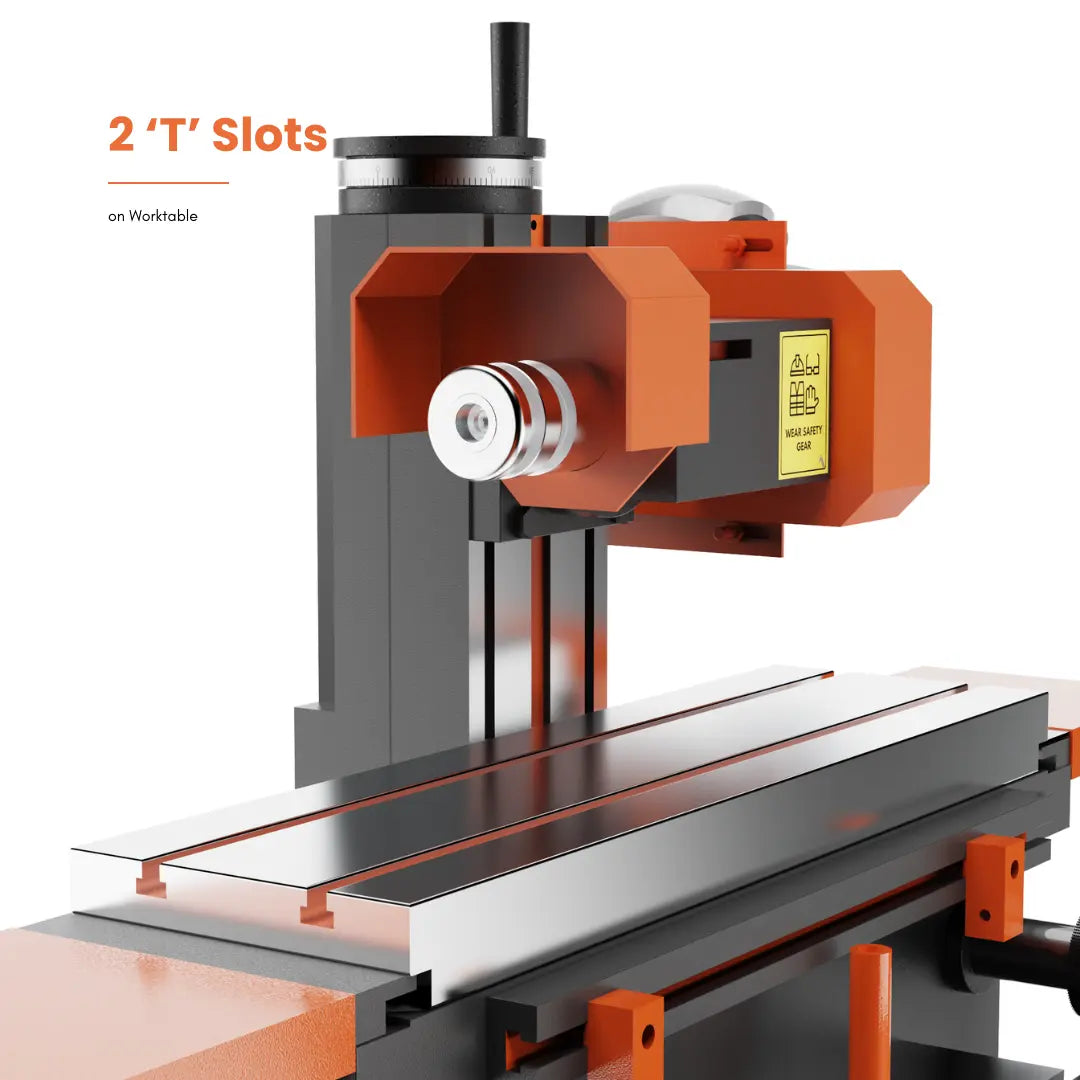

• C.D. of 'T' slots on worktable - 90 mm

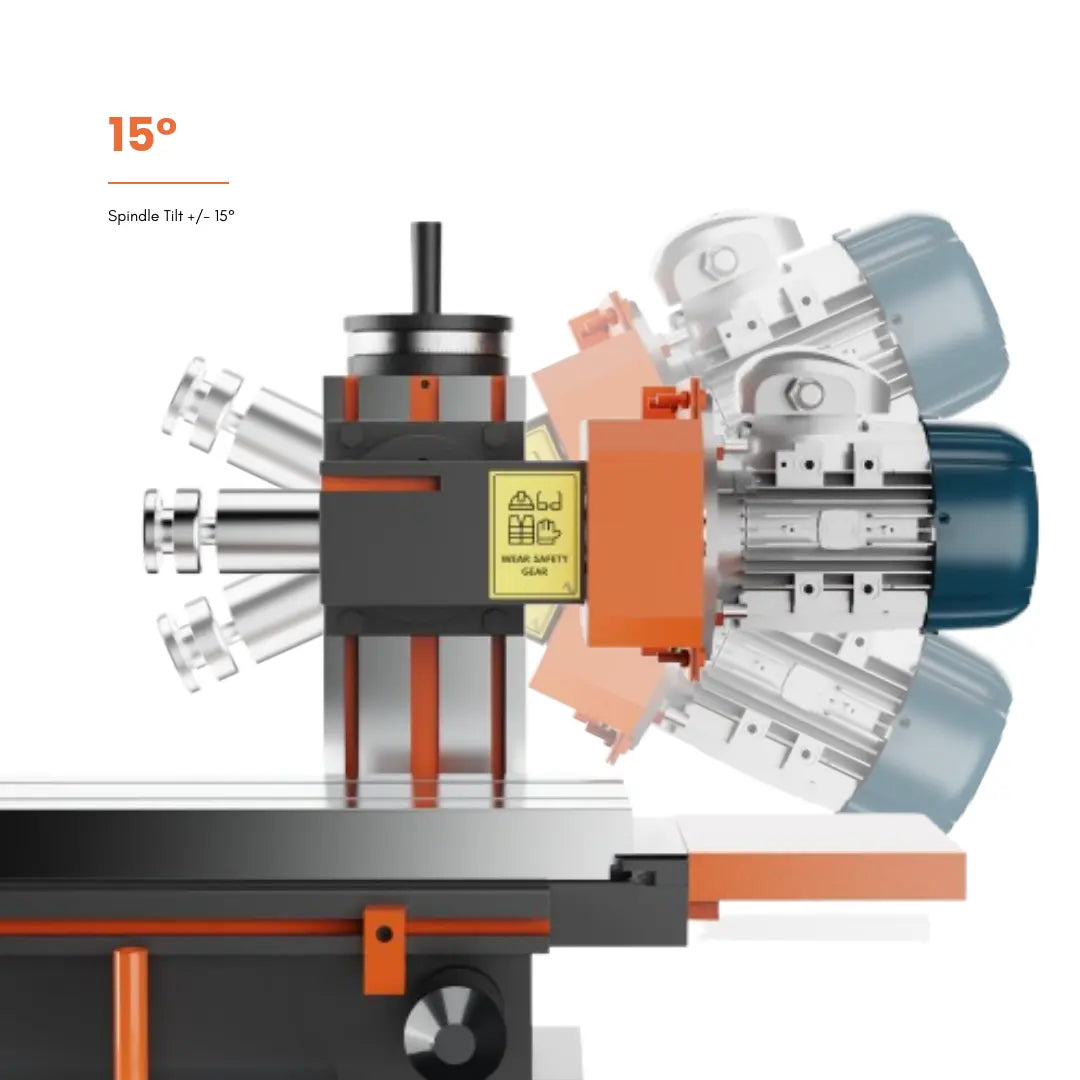

• Head swivel range (for tilting head model) - 15° each side

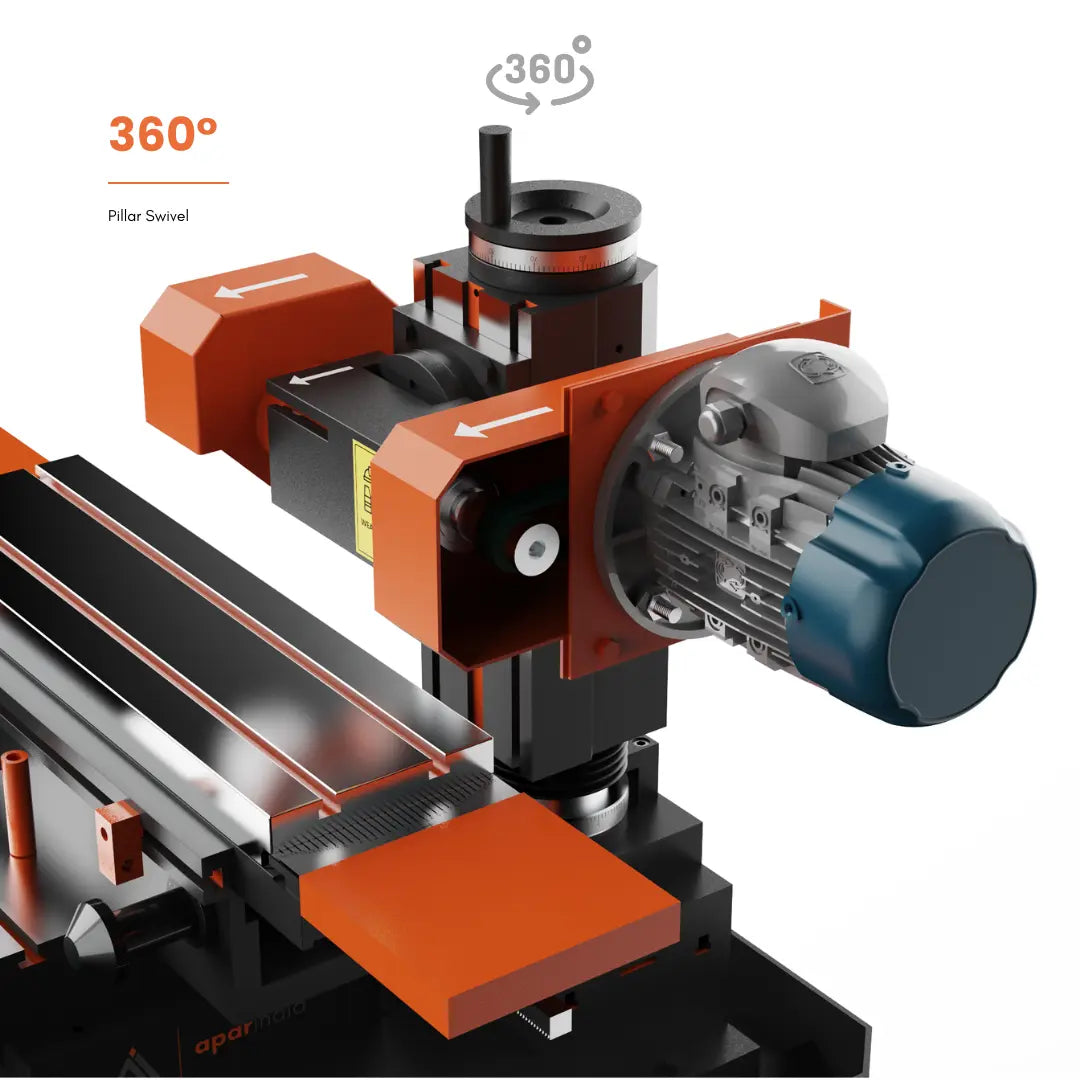

• Swivel range of head pillar - 360°
• Floor area covered - 740 X 860 mm
• Net weight (approx.) - 550 Kgs.
• Dimn. of wooden packaging case (H X W X T) - 1650 X 1140 X 1020

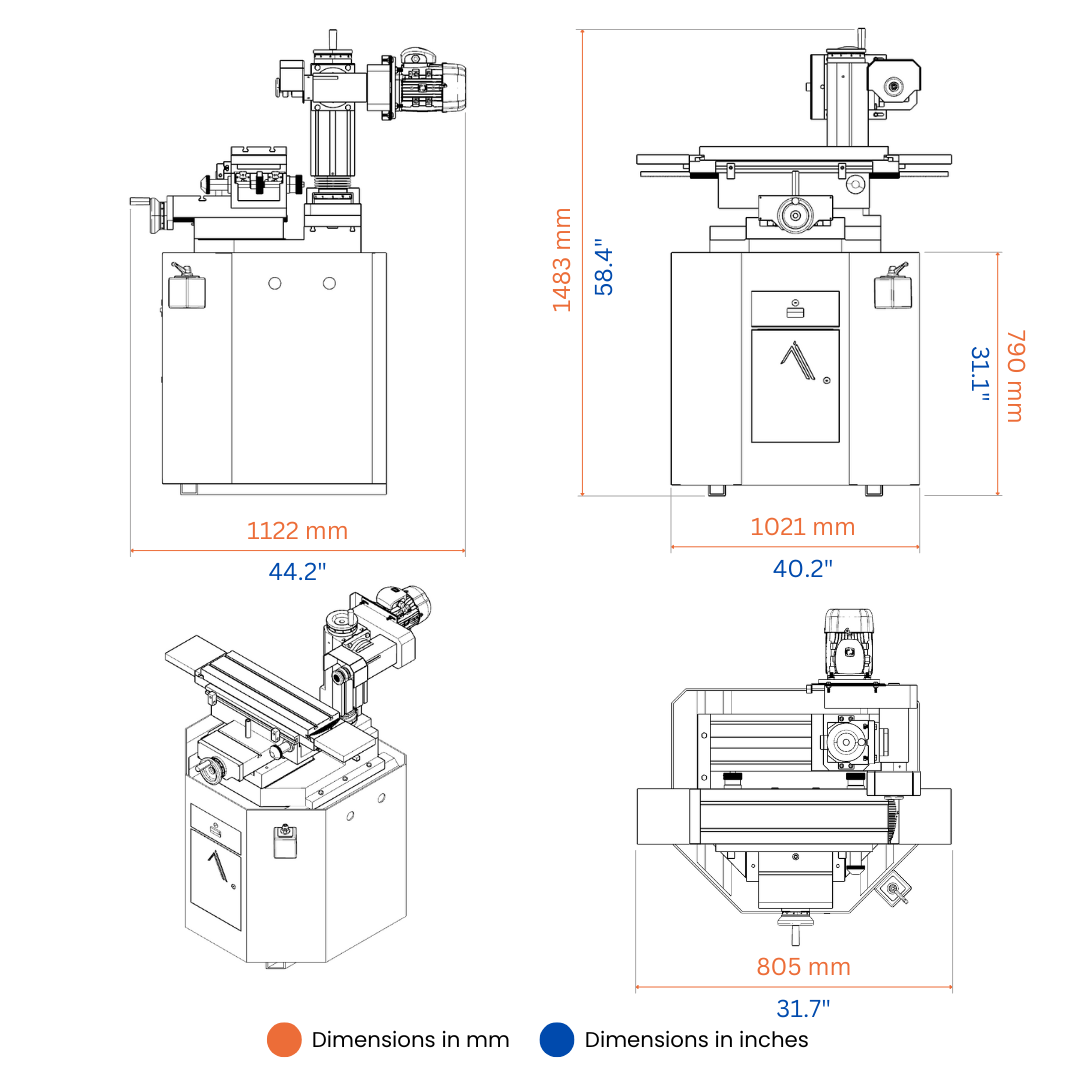

• LxBxH - 740mm X 860mm X 970mm (approx.)

• Delivery between 4-6 weeks from confirmation on order.

• 1 year against all mechanical parts
